Price List

High-Precision Motor Power Sensors for Process Manufacturing Industries

Pump Load Controls

Pump Load Control PMP 25 Front Side
PMP-25 Pump Load Control
Pump Load Control - Two Set Points (High and Low Trip) plus 4-20 Milliamp Analog Output, Built-in Digital Load Display. Includes Range Finder Toroid for motors up to 50HP
The PMP-25 delivers real-time true power monitoring to protect industrial pumps from dry running, cavitation, jams, and overloads before damage occurs.
Pump Load Control - Two Set Points (High and Low Trip) plus 4-20 Milliamp Analog Output, Built-in Digital Load Display. Includes Range Finder Toroid for motors up to 50HP
The PMP-25 delivers real-time true power monitoring to protect industrial pumps from dry running, cavitation, jams, and overloads before damage occurs.

Detects Loss of Load

  • Dry Running - detects the instant a pump loses its liquid, triggering shutdown before seal or impeller damage occurs
  • No Prime - catches loss of prime conditions before the pump runs dry
  • Cavitation - identifies unstable flow conditions through characteristic power fluctuations

Detects Overloads

  • Jammed Impeller - power spike signals a blockage or jam, triggering protection before mechanical damage escalates
  • Bad Bearings - gradual rise in motor load indicates developing bearing wear, enabling planned maintenance before failure
$1,040.00
Buy Now
PMP-25 Pump Load Control Front View
PMP-25 Pump Load Control with Tamper Proof Switch
Pump Load Control - Two Set Points (High and Low Trip) plus 4-20 Milliamp Analog Output, Built-in Digital Load Display. Includes Range Finder Toroid for motors up to 50HP and a Tamper Proof Switch
The PMP-25 with Tamper Proof Switch delivers the same industry-standard pump protection, with a locked switch to prevent unauthorised adjustment of set points in critical or shared environments.
Pump Load Control - Two Set Points (High and Low Trip) plus 4-20 Milliamp Analog Output, Built-in Digital Load Display. Includes Range Finder Toroid for motors up to 50HP and a Tamper Proof Switch
The PMP-25 with Tamper Proof Switch delivers the same industry-standard pump protection, with a locked switch to prevent unauthorised adjustment of set points in critical or shared environments.

Detects Loss of Load

  • Dry Running - detects the instant a pump loses its liquid before seal or impeller damage occurs
  • No Prime - catches loss of prime conditions before the pump runs dry
  • Cavitation - identifies unstable flow conditions through characteristic power fluctuations

Detects Overloads

  • Jammed Impeller - power spike signals a blockage, triggering protection before mechanical damage escalates
  • Bad Bearings - gradual rise in motor load indicates developing bearing wear before failure
$1,080.00
Buy Now

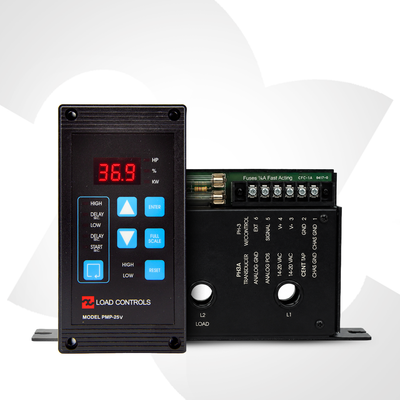

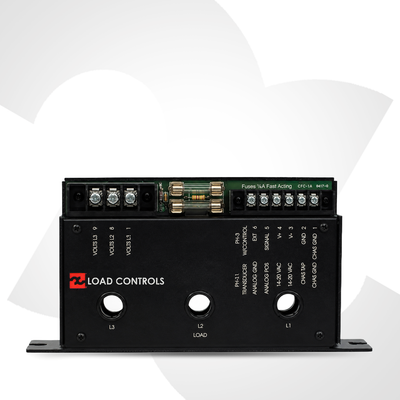

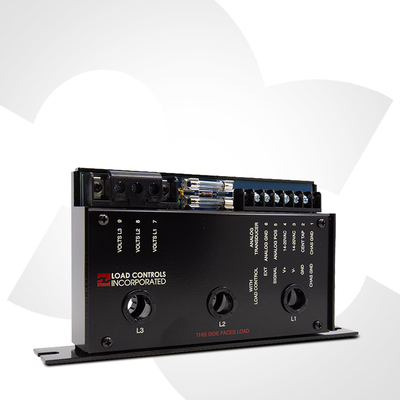

Pump Load Controls with PH-3A Front View
Pump Load Control (Variable Frequency Drives) with PH-3A Power Cell Monitor PMP-25V - W/PH3A
Pump Load Control - Two Set Points (High and Low Trip) plus 4-20 Milliamp Analog Output, Built-in Digital Load Display, for Variable Frequency Power (With PH3A): Power Cell Power Transducer
The PMP-25 delivers real-time true power monitoring to protect industrial pumps from dry running, cavitation, jams, and overloads before damage occurs.
Pump Load Control - Two Set Points (High and Low Trip) plus 4-20 Milliamp Analog Output, Built-in Digital Load Display, for Variable Frequency Power (With PH3A): Power Cell Power Transducer
The PMP-25 delivers real-time true power monitoring to protect industrial pumps from dry running, cavitation, jams, and overloads before damage occurs.

Detects Loss of Load

  • Dry Running - detects the instant a pump loses its liquid, triggering shutdown before seal or impeller damage occurs
  • No Prime - catches loss of prime conditions before the pump runs dry
  • Cavitation - identifies unstable flow conditions through characteristic power fluctuations

Detects Overloads

  • Jammed Impeller - power spike signals a blockage or jam, triggering protection before mechanical damage escalates
  • Bad Bearings - gradual rise in motor load indicates developing bearing wear, enabling planned maintenance before failure
$1,890.00
Buy Now

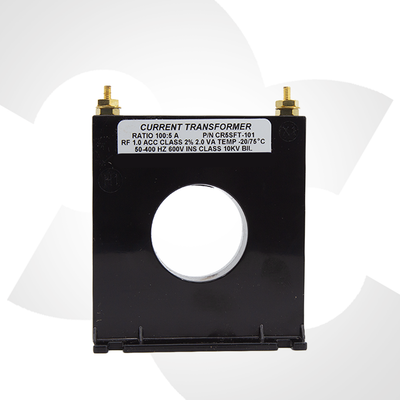

Pump Load Control PMP-25 with Current Transformer CT Front Side
Pump Load Control with Current Transformer PMP-25-CT300
Pump Load Control - Two Set Points (High and Low Trip) plus 4-20 Milliamp Analog Output, Built-in Digital Load Display. Includes Range Finder Toroid and Current Transformer for Motors up to 300 HP
The PMP-25 delivers real-time true power monitoring to protect industrial pumps from dry running, cavitation, jams, and overloads before damage occurs.
Pump Load Control - Two Set Points (High and Low Trip) plus 4-20 Milliamp Analog Output, Built-in Digital Load Display. Includes Range Finder Toroid and Current Transformer for Motors up to 300 HP
The PMP-25 delivers real-time true power monitoring to protect industrial pumps from dry running, cavitation, jams, and overloads before damage occurs.

Detects Loss of Load

  • Dry Running - detects the instant a pump loses its liquid, triggering shutdown before seal or impeller damage occurs
  • No Prime - catches loss of prime conditions before the pump runs dry
  • Cavitation - identifies unstable flow conditions through characteristic power fluctuations

Detects Overloads

  • Jammed Impeller - power spike signals a blockage or jam, triggering protection before mechanical damage escalates
  • Bad Bearings - gradual rise in motor load indicates developing bearing wear, enabling planned maintenance before failure
$1,180.00
Buy Now
Pump Load Control PMP-25 with Current Transformer CT Front Side
Pump Load Control with Current Transformer PMP-25-CT250
Pump Load Control - Two Set Points (High and Low Trip) plus 4-20 Milliamp Analog Output, Built-in Digital Load Display. Includes Range Finder Toroid and Current Transformer for Motors up to 250 HP
Pump Load Control - Two Set Points (High and Low Trip) plus 4-20 Milliamp Analog Output, Built-in Digital Load Display. Includes Range Finder Toroid and Current Transformer for Motors up to 250 HP
The PMP-25 delivers real-time true power monitoring to protect industrial pumps from dry running, cavitation, jams, and overloads before damage occurs.
Pump Load Control - Two Set Points (High and Low Trip) plus 4-20 Milliamp Analog Output, Built-in Digital Load Display. Includes Range Finder Toroid and Current Transformer for Motors up to 250 HP
Pump Load Control - Two Set Points (High and Low Trip) plus 4-20 Milliamp Analog Output, Built-in Digital Load Display. Includes Range Finder Toroid and Current Transformer for Motors up to 250 HP
The PMP-25 delivers real-time true power monitoring to protect industrial pumps from dry running, cavitation, jams, and overloads before damage occurs.

Detects Loss of Load

  • Dry Running - detects the instant a pump loses its liquid, triggering shutdown before seal or impeller damage occurs
  • No Prime - catches loss of prime conditions before the pump runs dry
  • Cavitation - identifies unstable flow conditions through characteristic power fluctuations

Detects Overloads

  • Jammed Impeller - power spike signals a blockage or jam, triggering protection before mechanical damage escalates
  • Bad Bearings - gradual rise in motor load indicates developing bearing wear, enabling planned maintenance before failure
$1,180.00
Buy Now
Pump Load Control PMP-25 with Current Transformer CT Front Side
Pump Load Control with Current Transformer PMP-25-CT200
Pump Load Control - Two Set Points (High and Low Trip) plus 4-20 Milliamp Analog Output, Built-in Digital Load Display. Includes Range Finder Toroid and Current Transformer for Motors up to 200 HP
The PMP-25 delivers real-time true power monitoring to protect industrial pumps from dry running, cavitation, jams, and overloads before damage occurs.
Pump Load Control - Two Set Points (High and Low Trip) plus 4-20 Milliamp Analog Output, Built-in Digital Load Display. Includes Range Finder Toroid and Current Transformer for Motors up to 200 HP
The PMP-25 delivers real-time true power monitoring to protect industrial pumps from dry running, cavitation, jams, and overloads before damage occurs.

Detects Loss of Load

  • Dry Running - detects the instant a pump loses its liquid, triggering shutdown before seal or impeller damage occurs
  • No Prime - catches loss of prime conditions before the pump runs dry
  • Cavitation - identifies unstable flow conditions through characteristic power fluctuations

Detects Overloads

  • Jammed Impeller - power spike signals a blockage or jam, triggering protection before mechanical damage escalates
  • Bad Bearings - gradual rise in motor load indicates developing bearing wear, enabling planned maintenance before failure
$1,180.00
Buy Now
Pump Load Control PMP-25 with Current Transformer CT Front Side
Pump Load Control with Current Transformer PMP-25-CT150
Pump Load Control - Two Set Points (High and Low Trip) plus 4-20 Milliamp Analog Output, Built-in Digital Load Display. Includes Range Finder Toroid and Current Transformer for Motors up to 150 HP
The PMP-25 delivers real-time true power monitoring to protect industrial pumps from dry running, cavitation, jams, and overloads before damage occurs.
Pump Load Control - Two Set Points (High and Low Trip) plus 4-20 Milliamp Analog Output, Built-in Digital Load Display. Includes Range Finder Toroid and Current Transformer for Motors up to 150 HP
The PMP-25 delivers real-time true power monitoring to protect industrial pumps from dry running, cavitation, jams, and overloads before damage occurs.

Detects Loss of Load

  • Dry Running - detects the instant a pump loses its liquid, triggering shutdown before seal or impeller damage occurs
  • No Prime - catches loss of prime conditions before the pump runs dry
  • Cavitation - identifies unstable flow conditions through characteristic power fluctuations

Detects Overloads

  • Jammed Impeller - power spike signals a blockage or jam, triggering protection before mechanical damage escalates
  • Bad Bearings - gradual rise in motor load indicates developing bearing wear, enabling planned maintenance before failure
$1,180.00
Buy Now

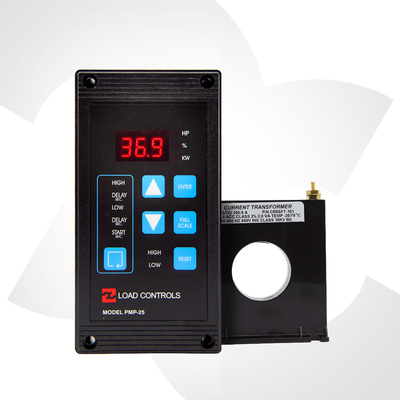

Pump Load Control PMP-25 with Current Transformer CT Front Side
Pump Load Control with Current Transformer PMP-25-CT100
Pump Load Control - Two Set Points (High and Low Trip) plus 4-20 Milliamp Analog Output, Built-in Digital Load Display. Includes Range Finder Toroid and Current Transformer for Motors up to 100 HP
The PMP-25 delivers real-time true power monitoring to protect industrial pumps from dry running, cavitation, jams, and overloads before damage occurs.
Pump Load Control - Two Set Points (High and Low Trip) plus 4-20 Milliamp Analog Output, Built-in Digital Load Display. Includes Range Finder Toroid and Current Transformer for Motors up to 100 HP
The PMP-25 delivers real-time true power monitoring to protect industrial pumps from dry running, cavitation, jams, and overloads before damage occurs.

Detects Loss of Load

  • Dry Running - detects the instant a pump loses its liquid, triggering shutdown before seal or impeller damage occurs
  • No Prime - catches loss of prime conditions before the pump runs dry
  • Cavitation - identifies unstable flow conditions through characteristic power fluctuations

Detects Overloads

  • Jammed Impeller - power spike signals a blockage or jam, triggering protection before mechanical damage escalates
  • Bad Bearings - gradual rise in motor load indicates developing bearing wear, enabling planned maintenance before failure
$1,180.00
Buy Now
Fast Response Load Control Front Side
Two Set Point Fast Response Load Control PFR-1750
Similar to the PMP-25 but only two set points (either high or low, not one of each) and is a Fast Response Load Control, Variable Frequency Power (Requires UPC-FR): Universal Power Cell with Two Analog Outputs 4-20 Milliamp & 0-10 Volts, Adjustable Capacity, Response Adjustment, Built-in Power Supply and Includes Fast Response Time
Fast Response Compact Digital Load Controls protect valuable equipment from overloads, jams, obstructions, and sudden load changes, delivering the highest sensitivity power sensing with flexible set points for alarms and motor control.
Similar to the PMP-25 but only two set points (either high or low, not one of each) and is a Fast Response Load Control, Variable Frequency Power (Requires UPC-FR): Universal Power Cell with Two Analog Outputs 4-20 Milliamp & 0-10 Volts, Adjustable Capacity, Response Adjustment, Built-in Power Supply and Includes Fast Response Time
Fast Response Compact Digital Load Controls protect valuable equipment from overloads, jams, obstructions, and sudden load changes, delivering the highest sensitivity power sensing with flexible set points for alarms and motor control.

Key Features

  • Application-specific controls for conveyors, mixers, material handling equipment, and other industrial motors
  • True power sensing for highest sensitivity detecting fault conditions that current-based monitoring misses
  • Flexible set points for alarms and motor control configurable to your specific motor and process
  • Electronic shear pin motor protection acts as a virtual mechanical fuse without physical replacement after every trip

Protects Against

  • Overloads / Jams / Obstructions
  • Sudden Load Change / Loss of Load
  • Missing Tools / Misplaced Parts
$975.00
Buy Now
Fast Response Load Control Front Side
Single Set Point Fast Response Load Control PFR-1550
Similar to the PMP-25 but only one single set point (either high or low) and is a Fast Response Load Control, Fixed Frequency
Fast Response Compact Digital Load Controls protect valuable equipment from overloads, jams, obstructions, and sudden load changes, delivering the highest sensitivity power sensing with flexible set points for alarms and motor control.
Similar to the PMP-25 but only one single set point (either high or low) and is a Fast Response Load Control, Fixed Frequency
Fast Response Compact Digital Load Controls protect valuable equipment from overloads, jams, obstructions, and sudden load changes, delivering the highest sensitivity power sensing with flexible set points for alarms and motor control.

Key Features

  • Application-specific controls for conveyors, mixers, material handling equipment, and other industrial motors
  • True power sensing for highest sensitivity detecting fault conditions that current-based monitoring misses
  • Flexible set points for alarms and motor control configurable to your specific motor and process
  • Electronic shear pin motor protection acts as a virtual mechanical fuse without physical replacement after every trip

Protects Against

  • Overloads / Jams / Obstructions
  • Sudden Load Change / Loss of Load
  • Missing Tools / Misplaced Parts
$825.00
Buy Now

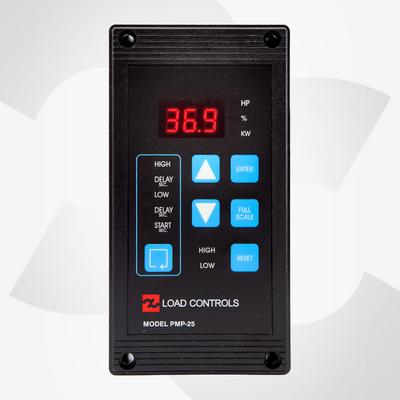

Fast Response Load Control Front View
Pump Load Control (Single Phase) PMP-25-SP
Pump Load Control - Two Set Points (High and Low Trip) plus 4-20 Milliamp Analog Output, Built-in Digital Load Display. Includes Range Finder Toroid and is for Single Phase Power
The PMP-25 delivers real-time true power monitoring to protect industrial pumps from dry running, cavitation, jams, and overloads before damage occurs.
Pump Load Control - Two Set Points (High and Low Trip) plus 4-20 Milliamp Analog Output, Built-in Digital Load Display. Includes Range Finder Toroid and is for Single Phase Power
The PMP-25 delivers real-time true power monitoring to protect industrial pumps from dry running, cavitation, jams, and overloads before damage occurs.

Detects Loss of Load

  • Dry Running - detects the instant a pump loses its liquid, triggering shutdown before seal or impeller damage occurs
  • No Prime - catches loss of prime conditions before the pump runs dry
  • Cavitation - identifies unstable flow conditions through characteristic power fluctuations

Detects Overloads

  • Jammed Impeller - power spike signals a blockage or jam, triggering protection before mechanical damage escalates
  • Bad Bearings - gradual rise in motor load indicates developing bearing wear, enabling planned maintenance before failure
$1,040.00
Buy Now
Pump Load Control PMP-25 Front View
Pump Load Control (50Hz) PMP-25-50Hz
Pump Load Control - Two Set Points (High and Low Trip) plus 4-20 Milliamp Analog Output, Built-in Digital Load Display. Includes Range Finder Toroid for motors up to 50HP and 50 Hz Frequency
The PMP-25 delivers real-time true power monitoring to protect industrial pumps from dry running, cavitation, jams, and overloads before damage occurs.
Pump Load Control - Two Set Points (High and Low Trip) plus 4-20 Milliamp Analog Output, Built-in Digital Load Display. Includes Range Finder Toroid for motors up to 50HP and 50 Hz Frequency
The PMP-25 delivers real-time true power monitoring to protect industrial pumps from dry running, cavitation, jams, and overloads before damage occurs.

Detects Loss of Load

  • Dry Running - detects the instant a pump loses its liquid, triggering shutdown before seal or impeller damage occurs
  • No Prime - catches loss of prime conditions before the pump runs dry
  • Cavitation - identifies unstable flow conditions through characteristic power fluctuations

Detects Overloads

  • Jammed Impeller - power spike signals a blockage or jam, triggering protection before mechanical damage escalates
  • Bad Bearings - gradual rise in motor load indicates developing bearing wear, enabling planned maintenance before failure
$1,040.00
Buy Now

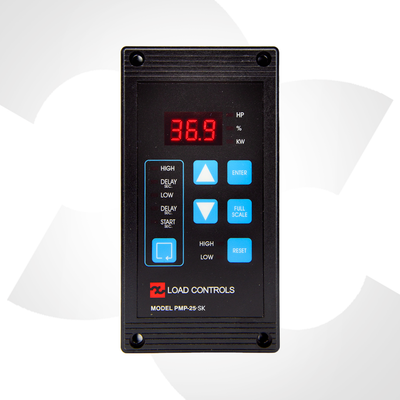

Pump Load Control PMP-25 Front View
Pump Monitor with Sinking Output PMP-25-SK
Pump Load Control - Two Set Points (High and Low Trip) plus 4-20 Milliamp Analog Output, Built-in Digital Load Display. Includes Range Finder Toroid for motors up to 50HP and Sinking Capability
The PMP-25 delivers real-time true power monitoring to protect industrial pumps from dry running, cavitation, jams, and overloads before damage occurs.
Pump Load Control - Two Set Points (High and Low Trip) plus 4-20 Milliamp Analog Output, Built-in Digital Load Display. Includes Range Finder Toroid for motors up to 50HP and Sinking Capability
The PMP-25 delivers real-time true power monitoring to protect industrial pumps from dry running, cavitation, jams, and overloads before damage occurs.

Detects Loss of Load

  • Dry Running - detects the instant a pump loses its liquid, triggering shutdown before seal or impeller damage occurs
  • No Prime - catches loss of prime conditions before the pump runs dry
  • Cavitation - identifies unstable flow conditions through characteristic power fluctuations

Detects Overloads

  • Jammed Impeller - power spike signals a blockage or jam, triggering protection before mechanical damage escalates
  • Bad Bearings - gradual rise in motor load indicates developing bearing wear, enabling planned maintenance before failure
$1,040.00
Buy Now

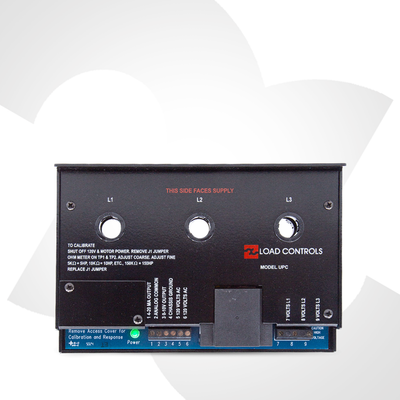

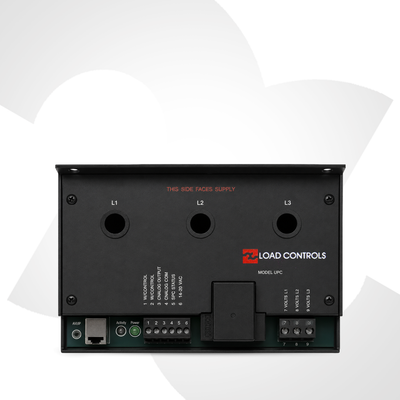

Pump Load Control with Universal Power Cell UPC Front View
Pump Load Control (Variable Frequency Drives) with Universal Power Cell PMP-25V - W/UPC
Pump Load Control - Two Set Points (High and Low Trip) plus 4-20 Milliamp Analog Output, Built-in Digital Load Display, for Variable Frequency Power (Requires UPC): Universal Power Cell with Two Analog Outputs 4-20 Milliamp & 0-10 Volts, Adjustable Capacity, Response Adjustment, Built-in Power Supply
The PMP-25 delivers real-time true power monitoring to protect industrial pumps from dry running, cavitation, jams, and overloads before damage occurs.
Pump Load Control - Two Set Points (High and Low Trip) plus 4-20 Milliamp Analog Output, Built-in Digital Load Display, for Variable Frequency Power (Requires UPC): Universal Power Cell with Two Analog Outputs 4-20 Milliamp & 0-10 Volts, Adjustable Capacity, Response Adjustment, Built-in Power Supply
The PMP-25 delivers real-time true power monitoring to protect industrial pumps from dry running, cavitation, jams, and overloads before damage occurs.

Detects Loss of Load

  • Dry Running - detects the instant a pump loses its liquid, triggering shutdown before seal or impeller damage occurs
  • No Prime - catches loss of prime conditions before the pump runs dry
  • Cavitation - identifies unstable flow conditions through characteristic power fluctuations

Detects Overloads

  • Jammed Impeller - power spike signals a blockage or jam, triggering protection before mechanical damage escalates
  • Bad Bearings - gradual rise in motor load indicates developing bearing wear, enabling planned maintenance before failure
$1,890.00
Buy Now

Compact Motor Power Sensors

Compact Power Motor Sensors TP-2 Front View
TP-2 Compact Motor Power Sensor
Compact Motor Power Sensor for motors up to 25HP
The TP-2 is the standard true motor power sensor for the world's largest chemical manufacturing plants - compact, low-cost, and purpose-built for small motor starter enclosures.
Compact Motor Power Sensor for motors up to 25HP
The TP-2 is the standard true motor power sensor for the world's largest chemical manufacturing plants - compact, low-cost, and purpose-built for small motor starter enclosures.

Key Specifications

  • Purpose-built for small motor starter enclosures
  • DIN-rail mounting option for flexible installation
  • True power measurement more accurate and sensitive than current sensing alone
  • The established standard for the world's largest chemical manufacturing plants
  • Low-cost true power monitoring without compromise on performance
$550.00
Buy Now
Compact Motor Power Sensors TP-2 with Current Transformer CT Front Side
Compact Motor Power Sensor with Current Transformer TP-2-CT500
TP2 Compact Motor Power Sensor With a Current Transformer for motors up to 500HP
The TP-2 is the standard true motor power sensor for the world's largest chemical manufacturing plants - compact, low-cost, and purpose-built for small motor starter enclosures.
TP2 Compact Motor Power Sensor With a Current Transformer for motors up to 500HP
The TP-2 is the standard true motor power sensor for the world's largest chemical manufacturing plants - compact, low-cost, and purpose-built for small motor starter enclosures.

Key Specifications

  • Purpose-built for small motor starter enclosures
  • DIN-rail mounting option for flexible installation
  • True power measurement more accurate and sensitive than current sensing alone
  • The established standard for the world's largest chemical manufacturing plants
  • Low-cost true power monitoring without compromise on performance
$690.00
Buy Now
Compact Motor Power Sensors TP-2 with Current Transformer CT Front Side
Compact Motor Power Sensor with Current Transformer TP-2-CT400
TP2 Compact Motor Power Sensor With a Current Transformer for motors up to 400HP
The TP-2 is the standard true motor power sensor for the world's largest chemical manufacturing plants - compact, low-cost, and purpose-built for small motor starter enclosures.
TP2 Compact Motor Power Sensor With a Current Transformer for motors up to 400HP
The TP-2 is the standard true motor power sensor for the world's largest chemical manufacturing plants - compact, low-cost, and purpose-built for small motor starter enclosures.

Key Specifications

  • Purpose-built for small motor starter enclosures
  • DIN-rail mounting option for flexible installation
  • True power measurement more accurate and sensitive than current sensing alone
  • The established standard for the world's largest chemical manufacturing plants
  • Low-cost true power monitoring without compromise on performance
$690.00
Buy Now
Compact Motor Power Sensors TP-2 with Current Transformer CT Front Side
Compact Motor Power Sensor with Current Transformer TP-2-CT300
TP2 Compact Motor Power Sensor With a Current Transformer for motors up to 300HP
The TP-2 is the standard true motor power sensor for the world's largest chemical manufacturing plants - compact, low-cost, and purpose-built for small motor starter enclosures.
TP2 Compact Motor Power Sensor With a Current Transformer for motors up to 300HP
The TP-2 is the standard true motor power sensor for the world's largest chemical manufacturing plants - compact, low-cost, and purpose-built for small motor starter enclosures.

Key Specifications

  • Purpose-built for small motor starter enclosures
  • DIN-rail mounting option for flexible installation
  • True power measurement more accurate and sensitive than current sensing alone
  • The established standard for the world's largest chemical manufacturing plants
  • Low-cost true power monitoring without compromise on performance
$690.00
Buy Now
Compact Motor Power Sensors TP-2 with Current Transformer CT Front Side
Compact Motor Power Sensor with Current Transformer TP-2-CT200
TP2 Compact Motor Power Sensor With a Current Transformer for motors up to 200HP
The TP-2 is the standard true motor power sensor for the world's largest chemical manufacturing plants - compact, low-cost, and purpose-built for small motor starter enclosures.
TP2 Compact Motor Power Sensor With a Current Transformer for motors up to 200HP
The TP-2 is the standard true motor power sensor for the world's largest chemical manufacturing plants - compact, low-cost, and purpose-built for small motor starter enclosures.

Key Specifications

  • Purpose-built for small motor starter enclosures
  • DIN-rail mounting option for flexible installation
  • True power measurement more accurate and sensitive than current sensing alone
  • The established standard for the world's largest chemical manufacturing plants
  • Low-cost true power monitoring without compromise on performance
$690.00
Buy Now
Compact Motor Power Sensors TP-2 with Current Transformer CT Front Side
Compact Motor Power Sensor with Current Transformer TP-2-CT150
TP2 Compact Motor Power Sensor With a Current Transformer for motors up to 150HP
The TP-2 is the standard true motor power sensor for the world's largest chemical manufacturing plants - compact, low-cost, and purpose-built for small motor starter enclosures.
TP2 Compact Motor Power Sensor With a Current Transformer for motors up to 150HP
The TP-2 is the standard true motor power sensor for the world's largest chemical manufacturing plants - compact, low-cost, and purpose-built for small motor starter enclosures.

Key Specifications

  • Purpose-built for small motor starter enclosures
  • DIN-rail mounting option for flexible installation
  • True power measurement more accurate and sensitive than current sensing alone
  • The established standard for the world's largest chemical manufacturing plants
  • Low-cost true power monitoring without compromise on performance
$690.00
Buy Now
Compact Motor Power Sensors TP-2 with Current Transformer CT Front Side
Compact Motor Power Sensor with Current Transformer TP-2-CT100
TP2 Compact Motor Power Sensor With a Current Transformer for motors up to 100HP
The TP-2 is the standard true motor power sensor for the world's largest chemical manufacturing plants - compact, low-cost, and purpose-built for small motor starter enclosures.
TP2 Compact Motor Power Sensor With a Current Transformer for motors up to 100HP
The TP-2 is the standard true motor power sensor for the world's largest chemical manufacturing plants - compact, low-cost, and purpose-built for small motor starter enclosures.

Key Specifications

  • Purpose-built for small motor starter enclosures
  • DIN-rail mounting option for flexible installation
  • True power measurement more accurate and sensitive than current sensing alone
  • The established standard for the world's largest chemical manufacturing plants
  • Low-cost true power monitoring without compromise on performance
$690.00
Buy Now
Compact Motor Power Sensors TP-2 with Current Transformer CT Front Side
Compact Motor Power Sensor with Current Transformer TP-2-CT75
TP2 Compact Motor Power Sensor With a Current Transformer for motors up to 75HP
The TP-2 is the standard true motor power sensor for the world's largest chemical manufacturing plants - compact, low-cost, and purpose-built for small motor starter enclosures.
TP2 Compact Motor Power Sensor With a Current Transformer for motors up to 75HP
The TP-2 is the standard true motor power sensor for the world's largest chemical manufacturing plants - compact, low-cost, and purpose-built for small motor starter enclosures.

Key Specifications

  • Purpose-built for small motor starter enclosures
  • DIN-rail mounting option for flexible installation
  • True power measurement more accurate and sensitive than current sensing alone
  • The established standard for the world's largest chemical manufacturing plants
  • Low-cost true power monitoring without compromise on performance
$690.00
Buy Now
Compact Motor Power Sensors TP-2 with Current Transformer CT Front Side
Compact Motor Power Sensor with Current Transformer TP-2-CT50
TP2 Compact Motor Power Sensor With a Current Transformer for motors up to 50HP
The TP-2 is the standard true motor power sensor for the world's largest chemical manufacturing plants - compact, low-cost, and purpose-built for small motor starter enclosures.
TP2 Compact Motor Power Sensor With a Current Transformer for motors up to 50HP
The TP-2 is the standard true motor power sensor for the world's largest chemical manufacturing plants - compact, low-cost, and purpose-built for small motor starter enclosures.

Key Specifications

  • Purpose-built for small motor starter enclosures
  • DIN-rail mounting option for flexible installation
  • True power measurement more accurate and sensitive than current sensing alone
  • The established standard for the world's largest chemical manufacturing plants
  • Low-cost true power monitoring without compromise on performance
$690.00
Buy Now
Compact Motor power sensor TP-2 with Load Controls Incorporated branding on a white background
TP-2 Single Phase Motor Power Sensor
Compact Motor Power Sensor for motors up to 25HP for Single Phase Power
The TP-2 Single Phase delivers true motor power monitoring for single phase motors - compact, low-cost, and the established standard across the world's largest chemical manufacturing plants.
Compact Motor Power Sensor for motors up to 25HP for Single Phase Power
The TP-2 Single Phase delivers true motor power monitoring for single phase motors - compact, low-cost, and the established standard across the world's largest chemical manufacturing plants.

Key Specifications

  • Designed specifically for single phase motor applications
  • Purpose-built for small motor starter enclosures
  • DIN-rail mounting option for flexible installation
  • True power measurement more accurate and sensitive than current sensing alone
  • The established standard for the world's largest chemical manufacturing plants
  • Low-cost true power monitoring without compromise on performance
$550.00
Buy Now

Fast Response Load Controls

CR 150 Fast Response Load Control Front View
CR-150 Fast Response Current Sensing Load Control
Current Sensor with adjustable set point, as well as relay and analog outputs
The CR-150 delivers fast response current-based load control with an adjustable set point and both relay and analog outputs, reliable motor protection in a straightforward, easy-to-install package.
Current Sensor with adjustable set point, as well as relay and analog outputs
The CR-150 delivers fast response current-based load control with an adjustable set point and both relay and analog outputs, reliable motor protection in a straightforward, easy-to-install package.

Key Specifications

  • Adjustable set point tunable to your specific motor and application
  • Relay and analog outputs included as standard
  • Fast response current sensing for rapid fault detection
  • Detects overloads, jams, and loss-of-load conditions
  • Easy integration with existing PLCs, control panels, and SCADA systems
  • Contact us for purchasing options and pricing
$730.00
Buy Now
Rate of Change Load Control with Universal Power Cell ROC-50VWUPC-FR Front Side
Rate of Change Load Control with Fast Response Universal Power Cell (Variable Frequency Drives) ROC-50V W/ UPC-FR
Rate of Change, measures the power similar to the PMP-25 (part of the P-series) but will trip when there is a change in the average Fast Response Load Controls, Variable Frequency Power (Requires UPC-FR):Universal Power Cell with Two Analog Outputs 4-20 Milliamp & 0-10 Volts, Adjustable Capacity, Response Adjustment, Built-in Power Supply and Includes Fast Response Time
The ROC-50 monitors true motor power with dual adjustable set points — limiting both sudden load changes and total maximum load for comprehensive motor protection.
Rate of Change, measures the power similar to the PMP-25 (part of the P-series) but will trip when there is a change in the average Fast Response Load Controls, Variable Frequency Power (Requires UPC-FR):Universal Power Cell with Two Analog Outputs 4-20 Milliamp & 0-10 Volts, Adjustable Capacity, Response Adjustment, Built-in Power Supply and Includes Fast Response Time
The ROC-50 monitors true motor power with dual adjustable set points — limiting both sudden load changes and total maximum load for comprehensive motor protection.

Two Set Points

  • Rate — limits sudden increases in load regardless of total load
  • Max — limits total load

Key Specifications

  • Capacity: up to 50HP directly / up to 500HP with external CT
  • Response time: 25 milliseconds
  • Digital load display: 0.4" LED 3-digit
  • Analog output: 4–20mA (powered by ROC-50)
  • Relay outputs: 2 x Form C, 3A @ 300VAC — latching
  • Enclosure: NEMA 4/4X glass-filled polycarbonate
  • Timers: Start-up (0–90 sec) and Trip Delay (0–90 sec)
  • Display: configurable for HP, % or KW
  • Three reset options: manual, remote, or automatic
$1,750.00
Buy Now
Rate of Change Load Control Front Side
Rate of Change Load Control ROC-50
Rate of Change, measures the power similar to the PMP-25 (part of the P-series) but will trip when there is a change in the average Fast Response Load Controls, Fixed Frequency
The ROC-50 monitors true motor power with dual adjustable set points — limiting both sudden load changes and total maximum load for comprehensive motor protection.
Rate of Change, measures the power similar to the PMP-25 (part of the P-series) but will trip when there is a change in the average Fast Response Load Controls, Fixed Frequency
The ROC-50 monitors true motor power with dual adjustable set points — limiting both sudden load changes and total maximum load for comprehensive motor protection.

Two Set Points

  • Rate — limits sudden increases in load regardless of total load
  • Max — limits total load

Key Specifications

  • Capacity: up to 50HP directly / up to 500HP with external CT
  • Response time: 25 milliseconds
  • Digital load display: 0.4" LED 3-digit
  • Analog output: 4–20mA (powered by ROC-50)
  • Relay outputs: 2 x Form C, 3A @ 300VAC — latching
  • Enclosure: NEMA 4/4X glass-filled polycarbonate
  • Timers: Start-up (0–90 sec) and Trip Delay (0–90 sec)
  • Display: configurable for HP, % or KW
  • Three reset options: manual, remote, or automatic
$975.00
Buy Now
Pump Load Control with PH-3A Front View
Two Set Point Load Control with PH-3A Power Cell Monitor PFR-1750V W/PH3A
Similar to the PMP-25 but only two set points (either high or low, not one of each) and is a Fast Response Load Control, Variable Frequency Power (Requires PH3A):Power Cell Power Transducer
Fast Response Compact Digital Load Controls protect valuable equipment from overloads, jams, obstructions, and sudden load changes, delivering the highest sensitivity power sensing with flexible set points for alarms and motor control.
Similar to the PMP-25 but only two set points (either high or low, not one of each) and is a Fast Response Load Control, Variable Frequency Power (Requires PH3A):Power Cell Power Transducer
Fast Response Compact Digital Load Controls protect valuable equipment from overloads, jams, obstructions, and sudden load changes, delivering the highest sensitivity power sensing with flexible set points for alarms and motor control.

Key Features

  • Application-specific controls for conveyors, mixers, material handling equipment, and other industrial motors
  • True power sensing for highest sensitivity detecting fault conditions that current-based monitoring misses
  • Flexible set points for alarms and motor control configurable to your specific motor and process
  • Electronic shear pin motor protection acts as a virtual mechanical fuse without physical replacement after every trip

Protects Against

  • Overloads / Jams / Obstructions
  • Sudden Load Change / Loss of Load
  • Missing Tools / Misplaced Parts
$1,750.00
Buy Now
Two electronic load control devices with digital displays on a white background. Fast Response Load Control with Universal Power Cell Front View
Two Set Point Load Control with Universal Power Cell Long Response (Variable Frequency Drives) PFR-1750V W/UPC-FR
Similar to the PMP-25 but only two set points (either high or low, not one of each) and is a Fast Response Load Control, Variable Frequency Power (Requires UPC-FR): Universal Power Cell with Two Analog Outputs 4-20 Milliamp & 0-10 Volts, Adjustable Capacity, Response Adjustment, Built-in Power Supply and Includes Fast Response Time
Fast Response Compact Digital Load Controls protect valuable equipment from overloads, jams, obstructions, and sudden load changes, delivering the highest sensitivity power sensing with flexible set points for alarms and motor control.
Similar to the PMP-25 but only two set points (either high or low, not one of each) and is a Fast Response Load Control, Variable Frequency Power (Requires UPC-FR): Universal Power Cell with Two Analog Outputs 4-20 Milliamp & 0-10 Volts, Adjustable Capacity, Response Adjustment, Built-in Power Supply and Includes Fast Response Time
Fast Response Compact Digital Load Controls protect valuable equipment from overloads, jams, obstructions, and sudden load changes, delivering the highest sensitivity power sensing with flexible set points for alarms and motor control.

Key Features

  • Application-specific controls for conveyors, mixers, material handling equipment, and other industrial motors
  • True power sensing for highest sensitivity detecting fault conditions that current-based monitoring misses
  • Flexible set points for alarms and motor control configurable to your specific motor and process
  • Electronic shear pin motor protection acts as a virtual mechanical fuse without physical replacement after every trip

Protects Against

  • Overloads / Jams / Obstructions
  • Sudden Load Change / Loss of Load
  • Missing Tools / Misplaced Parts
$1,750.00
Buy Now
Fast Response Load Control with PH3A
Single Set Point Load Control with PH-3A Power Cell Monitor PFR-1550V W/PH3A
Similar to the PMP-25 but only one single set point (either high or low) and is a Fast Response Load Control, For Variable Frequency Power (Requires PH3A): Power Cell Power Transducer
Fast Response Compact Digital Load Controls protect valuable equipment from overloads, jams, obstructions, and sudden load changes, delivering the highest sensitivity power sensing with flexible set points for alarms and motor control.
Similar to the PMP-25 but only one single set point (either high or low) and is a Fast Response Load Control, For Variable Frequency Power (Requires PH3A): Power Cell Power Transducer
Fast Response Compact Digital Load Controls protect valuable equipment from overloads, jams, obstructions, and sudden load changes, delivering the highest sensitivity power sensing with flexible set points for alarms and motor control.

Key Features

  • Application-specific controls for conveyors, mixers, material handling equipment, and other industrial motors
  • True power sensing for highest sensitivity detecting fault conditions that current-based monitoring misses
  • Flexible set points for alarms and motor control configurable to your specific motor and process
  • Electronic shear pin motor protection acts as a virtual mechanical fuse without physical replacement after every trip

Protects Against

  • Overloads / Jams / Obstructions
  • Sudden Load Change / Loss of Load
  • Missing Tools / Misplaced Parts
$1,615.00
Buy Now
Fast Response Load Control with UPC universal Power Cell Front View
Single Set Point Load Control with Universal Power Cell Long Response (Variable Frequency Drives) PFR-1550V W/UPC-FR
Similar to the PMP-25 but only one single set point (either high or low) and is a Fast Response Load Control, For Variable Frequency Power (Requires UPC-FR)
Fast Response Compact Digital Load Controls protect valuable equipment from overloads, jams, obstructions, and sudden load changes, delivering the highest sensitivity power sensing with flexible set points for alarms and motor control.
Similar to the PMP-25 but only one single set point (either high or low) and is a Fast Response Load Control, For Variable Frequency Power (Requires UPC-FR)
Fast Response Compact Digital Load Controls protect valuable equipment from overloads, jams, obstructions, and sudden load changes, delivering the highest sensitivity power sensing with flexible set points for alarms and motor control.

Key Features

  • Application-specific controls for conveyors, mixers, material handling equipment, and other industrial motors
  • True power sensing for highest sensitivity detecting fault conditions that current-based monitoring misses
  • Flexible set points for alarms and motor control configurable to your specific motor and process
  • Electronic shear pin motor protection acts as a virtual mechanical fuse without physical replacement after every trip

Protects Against

  • Overloads / Jams / Obstructions
  • Sudden Load Change / Loss of Load
  • Missing Tools / Misplaced Parts
$1,615.00
Buy Now

Power Cells

Load Controls Universal Power Cell Top View
Model UPC Adjustable Capacity Power Sensor
Universal Power Cell with Two Analog Outputs 4-20 Milliamp & 0-10 Volts, Adjustable Capacity, Response Adjustment, Built-in Power Supply
The Model UPC senses true motor power across fixed frequency, variable frequency, single phase, and DC motors - measuring viscosity, tool condition, feed rate, and more with dual analog outputs.
Universal Power Cell with Two Analog Outputs 4-20 Milliamp & 0-10 Volts, Adjustable Capacity, Response Adjustment, Built-in Power Supply
The Model UPC senses true motor power across fixed frequency, variable frequency, single phase, and DC motors - measuring viscosity, tool condition, feed rate, and more with dual analog outputs.

Get Valuable Information

  • Pump or Fan Flow monitor flow conditions through changes in true motor power
  • Mixture Viscosity detect product consistency shifts in real time without process contact
  • Optimum Feed Rate maintain peak efficiency through continuous load feedback
  • Tool Condition catch dull or breaking tools before workpiece or machine damage occurs
  • Beginning or End of Process reliably detect process start and end through motor load changes
  • Obstructions power spike signals a blockage before mechanical damage escalates
  • Overloads rising load triggers alarm or shutdown before equipment is damaged
$1,050.00
Buy Now
Universal Power Cell UPC Top View
UPC-230 Volt Power Supply Input
Universal Power Cell with Two Analog Outputs 4-20 Milliamp & 0-10 Volts, Adjustable Capacity, Response Adjustment, Built-in 230 volt Power Supply
The UPC-230 delivers the same true motor power monitoring capability as the standard UPC, now with a 230V power supply input for facilities running on higher voltage infrastructure.
Universal Power Cell with Two Analog Outputs 4-20 Milliamp & 0-10 Volts, Adjustable Capacity, Response Adjustment, Built-in 230 volt Power Supply
The UPC-230 delivers the same true motor power monitoring capability as the standard UPC, now with a 230V power supply input for facilities running on higher voltage infrastructure.

Get Valuable Information

  • Pump or Fan Flow monitor flow conditions through changes in true motor power
  • Mixture Viscosity detect product consistency shifts in real time without process contact
  • Optimum Feed Rate maintain peak efficiency through continuous load feedback
  • Tool Condition catch dull or breaking tools before workpiece or machine damage occurs
  • Beginning or End of Process reliably detect process start and end through motor load changes
  • Obstructions power spike signals a blockage before mechanical damage escalates
  • Overloads rising load triggers alarm or shutdown before equipment is damaged
  • Loss of Load power drop signals broken coupling, empty pump, or snapped belt instantly
$1,075.00
Buy Now
Universal Power Cell UPC Top View
UPC-FR Fast Response Universal Power Cell
Universal Power Cell with Two Analog Outputs 4-20 Milliamp & 0-10 Volts, Adjustable Capacity, Response Adjustment, Built-in Power Supply and Includes Fast Response Time
The UPC-FR delivers true motor power monitoring with an ultra-fast 0.050 second response time, purpose-built for machine tool monitoring and VFD-driven applications where speed of detection is critical.
Universal Power Cell with Two Analog Outputs 4-20 Milliamp & 0-10 Volts, Adjustable Capacity, Response Adjustment, Built-in Power Supply and Includes Fast Response Time
The UPC-FR delivers true motor power monitoring with an ultra-fast 0.050 second response time, purpose-built for machine tool monitoring and VFD-driven applications where speed of detection is critical.

Get Valuable Information

  • Pump or Fan Flow / Mixture Viscosity
  • Optimum Feed Rate / Tool Condition
  • Obstructions / Overloads / Loss of Load
  • Beginning or End of Process

Key Specifications

  • 0.050 second response time
  • Ideal for machine tool and CNC spindle monitoring
  • Compatible with "V" Series Load Controls for VFD applications
  • Outputs: 0–10V DC, 4–20mA, and Modbus
$1,050.00
Buy Now
Unviersal Power Cell UPC with 'Load Controls' branding on a white background top view
Universal Power Cell Long Response UPC-LR
Universal Power Cell with Two Analog Outputs 4-20 Milliamp & 0-10 Volts, Adjustable Capacity, Response Adjustment, Built-in Power Supply and Includes Long Response Time
The Model UPC senses true motor power across fixed frequency, variable frequency, single phase, and DC motors - measuring viscosity, tool condition, feed rate, and more with dual analog outputs.
Universal Power Cell with Two Analog Outputs 4-20 Milliamp & 0-10 Volts, Adjustable Capacity, Response Adjustment, Built-in Power Supply and Includes Long Response Time
The Model UPC senses true motor power across fixed frequency, variable frequency, single phase, and DC motors - measuring viscosity, tool condition, feed rate, and more with dual analog outputs.

Get Valuable Information

  • Pump or Fan Flow monitor flow conditions through changes in true motor power
  • Mixture Viscosity detect product consistency shifts in real time without process contact
  • Optimum Feed Rate maintain peak efficiency through continuous load feedback
  • Tool Condition catch dull or breaking tools before workpiece or machine damage occurs
  • Beginning or End of Process reliably detect process start and end through motor load changes
  • Obstructions power spike signals a blockage before mechanical damage escalates
  • Overloads rising load triggers alarm or shutdown before equipment is damaged
$1,050.00
Buy Now
PH 1000 Power Cell Monitor Front Side
Large Capacity for Big Loads Power Cell PH-1000-R
Power Cell Power Transducer for sensing Large Three Phase Power with Optional Response Adjustment
The PH-3 and PH-1000 power cells deliver true motor power monitoring for high-demand machine tool and large industrial motor applications from ultra-fast spindle protection to motors up to 1000HP.
Power Cell Power Transducer for sensing Large Three Phase Power with Optional Response Adjustment
The PH-3 and PH-1000 power cells deliver true motor power monitoring for high-demand machine tool and large industrial motor applications from ultra-fast spindle protection to motors up to 1000HP.
  • Monitors motors up to 1000HP
  • 1-3/4" conductor openings for large motor feeds
  • Purpose-built for large industrial motor environments where standard sensors fall short
$1,370.00
Buy Now
PH-3A Power Cell Front View
Fast Response Power Cell Monitor PH-3A-R
Power Cell Power Transducer with Optional Response Adjustment
The PH-3 and PH-1000 power cells deliver true motor power monitoring for high-demand machine tool and large industrial motor applications from ultra-fast spindle protection to motors up to 1000HP.
Power Cell Power Transducer with Optional Response Adjustment
The PH-3 and PH-1000 power cells deliver true motor power monitoring for high-demand machine tool and large industrial motor applications from ultra-fast spindle protection to motors up to 1000HP.
  • Ideal for machine tool and CNC spindle monitoring
  • Ultra-fast response for tool breakage and overload detection
  • Self-contained - no PTs or CTs to install
$1,145.00
Buy Now
PH 1000 Power Cell Front View
Large Capacity for Big Loads Power Cell PH-1000
Power Cell Power Transducer for sensing Large Three Phase Power
The PH-3 and PH-1000 power cells deliver true motor power monitoring for high-demand machine tool and large industrial motor applications from ultra-fast spindle protection to motors up to 1000HP.
Power Cell Power Transducer for sensing Large Three Phase Power
The PH-3 and PH-1000 power cells deliver true motor power monitoring for high-demand machine tool and large industrial motor applications from ultra-fast spindle protection to motors up to 1000HP.
  • Monitors motors up to 1000HP
  • 1-3/4" conductor openings for large motor feeds
  • Purpose-built for large industrial motor environments where standard sensors fall short
$1,275.00
Buy Now
PH-3A Power Cell Monitor Angle View
Fast Response Power Cell Monitor PH-3A
Power Cell Power Transducer
The PH-3 and PH-1000 power cells deliver true motor power monitoring for high-demand machine tool and large industrial motor applications from ultra-fast spindle protection to motors up to 1000HP.
Power Cell Power Transducer
The PH-3 and PH-1000 power cells deliver true motor power monitoring for high-demand machine tool and large industrial motor applications from ultra-fast spindle protection to motors up to 1000HP.
  • Ideal for machine tool and CNC spindle monitoring
  • Ultra-fast response for tool breakage and overload detection
  • Self-contained - no PTs or CTs to install
$1,050.00
Buy Now
Universal Power Cell UPC Top View
UPC-E Ethernet Enabled Power Cell
Universal Power Cell with Two Analog Outputs 0-10 Volts and Ethernet, Adjustable Capacity, Response Adjustment, Built-in Power Supply
The Model UPC senses true motor power across fixed frequency, variable frequency, single phase, and DC motors - measuring viscosity, tool condition, feed rate, and more with dual analog outputs.
Universal Power Cell with Two Analog Outputs 0-10 Volts and Ethernet, Adjustable Capacity, Response Adjustment, Built-in Power Supply
The Model UPC senses true motor power across fixed frequency, variable frequency, single phase, and DC motors - measuring viscosity, tool condition, feed rate, and more with dual analog outputs.

Get Valuable Information

  • Pump or Fan Flow monitor flow conditions through changes in true motor power
  • Mixture Viscosity detect product consistency shifts in real time without process contact
  • Optimum Feed Rate maintain peak efficiency through continuous load feedback
  • Tool Condition catch dull or breaking tools before workpiece or machine damage occurs
  • Beginning or End of Process reliably detect process start and end through motor load changes
  • Obstructions power spike signals a blockage before mechanical damage escalates
  • Overloads rising load triggers alarm or shutdown before equipment is damaged
$1,095.00
Buy Now
Load Controls Universal Power Cell Top View
UPC-MB Modbus-Enabled Universal Power Cell
Universal Power Cell with Two Analog Outputs 0-10 Volts, Adjustable Capacity, Response Adjustment, Built-in Power Supply and Includes RS-485 Modbus Output.
The UPC-MB brings full Modbus connectivity to true motor power monitoring, with real-time adjustment of sensitivity and response time via RS-485, ideal for advanced machine tool and process applications.
Universal Power Cell with Two Analog Outputs 0-10 Volts, Adjustable Capacity, Response Adjustment, Built-in Power Supply and Includes RS-485 Modbus Output.
The UPC-MB brings full Modbus connectivity to true motor power monitoring, with real-time adjustment of sensitivity and response time via RS-485, ideal for advanced machine tool and process applications.

Get Valuable Information

  • Tool Condition / Optimal Feed Rate
  • Beginning or End of Multiple Processes
  • Overloads and Loss of Load

Key Specifications

  • Real-time HP full scale adjustment via Modbus input from under 5HP to 150HP
  • Real-time response time setting 4ms to 8 seconds via Modbus
  • RS-485 serial bus link - Modbus slave mode for input and output
  • Analog output: 0–10V DC
  • Works on fixed frequency, variable frequency, single phase, and DC motors
  • Up to 600V
  • Self-contained - no CTs or PTs to install
  • True power measurement up to 10x more sensitive than current sensors
$1,095.00
Buy Now
Load Controls Universal Power Cell Top View
UPC-LB Larger Holes
Universal Power Cell with Two Analog Outputs 4-20 Milliamp & 0-10 Volts, Adjustable Capacity, Response Adjustment, Built-in Power Supply and Larger Holes for Wire Size up to 0.84 Inches (23 MM)
The UPC-LB delivers the same true motor power monitoring as the standard UPC, with larger conductor openings accommodating wires up to 0.9" diameter, ideal for higher current motor installations.
Universal Power Cell with Two Analog Outputs 4-20 Milliamp & 0-10 Volts, Adjustable Capacity, Response Adjustment, Built-in Power Supply and Larger Holes for Wire Size up to 0.84 Inches (23 MM)
The UPC-LB delivers the same true motor power monitoring as the standard UPC, with larger conductor openings accommodating wires up to 0.9" diameter, ideal for higher current motor installations.

Get Valuable Information

  • Pump or Fan Flow / Mixture Viscosity
  • Optimum Feed Rate / Tool Condition
  • Obstructions / Overloads / Loss of Load
  • Beginning or End of Process

Key Specifications

  • Conductor openings for wires up to 0.9" (23mm) diameter
  • Nearly 50% more area than a standard UPC
  • Outputs: 0–10V DC, 4–20mA, and Modbus
$1,095.00
Buy Now

Accessories

Range Finder Toroid Angle View
Range Finder Toroid RFT
The Range Finder Toroid is an essential current sensing component for Load Controls' motor protection systems, accurately sampling motor current across a wide range of motor sizes for precise true power measurement.
The Range Finder Toroid is an essential current sensing component for Load Controls' motor protection systems, accurately sampling motor current across a wide range of motor sizes for precise true power measurement.

Key Specifications

  • Direct motor coverage: up to 50HP through toroid
  • Extended coverage: up to 500HP with external current transformer
  • Multiple conductor passes for motors under 5HP
  • CT secondary input for motors above 50HP
  • Six motor size range settings
  • Non-invasive, installs at motor control panel with no process interruption
$275.00
Buy Now
Current Transformer CT-500 with specifications label on a white background Front View
Current Transformer CT-50
Current Transformer-50
Current Transformers accurately reduce high AC current levels to a safe, measurable output, enabling precise motor load monitoring, overcurrent detection, and seamless integration with Load Controls' power sensing solutions.
Current Transformer-50
Current Transformers accurately reduce high AC current levels to a safe, measurable output, enabling precise motor load monitoring, overcurrent detection, and seamless integration with Load Controls' power sensing solutions.

Three CT Types Available

  • Wound CT - primary winding connected directly in series with the conductor; magnitude of secondary current determined by turns ratio
  • Toroidal CT - no primary winding; current-carrying conductor threaded through the core window; split-core options available for easy installation without disconnecting the circuit
  • Bar-type CT - uses the actual cable or bus bar as the primary winding; fully insulated from high operating voltage and bolted directly to the current-carrying device

Key Specifications

  • Standard secondary output: 1A or 5A
  • Reduces high primary currents to safe, measurable secondary levels
  • Primary winding connected in series - non-invasive, no process interruption
  • Compatible with Load Controls' full range of power sensors and load controls
  • Split-core toroidal options available for retrofit installations without circuit disconnection

Important Safety Note - The secondary winding of a current transformer must never be left open-circuited while the primary is energised. Always short-circuit the secondary terminals before removing any connected instrument or load control.

$140.00
Buy Now
Current Transformer CT-500 with specifications label on a white background Front View
Current Transformer CT-500
Current Transformer-500
Current Transformers accurately reduce high AC current levels to a safe, measurable output, enabling precise motor load monitoring, overcurrent detection, and seamless integration with Load Controls' power sensing solutions.
Current Transformer-500
Current Transformers accurately reduce high AC current levels to a safe, measurable output, enabling precise motor load monitoring, overcurrent detection, and seamless integration with Load Controls' power sensing solutions.

Three CT Types Available

  • Wound CT - primary winding connected directly in series with the conductor; magnitude of secondary current determined by turns ratio
  • Toroidal CT - no primary winding; current-carrying conductor threaded through the core window; split-core options available for easy installation without disconnecting the circuit
  • Bar-type CT - uses the actual cable or bus bar as the primary winding; fully insulated from high operating voltage and bolted directly to the current-carrying device

Key Specifications

  • Standard secondary output: 1A or 5A
  • Reduces high primary currents to safe, measurable secondary levels
  • Primary winding connected in series - non-invasive, no process interruption
  • Compatible with Load Controls' full range of power sensors and load controls
  • Split-core toroidal options available for retrofit installations without circuit disconnection

Important Safety Note - The secondary winding of a current transformer must never be left open-circuited while the primary is energised. Always short-circuit the secondary terminals before removing any connected instrument or load control.

$140.00
Buy Now
Current Transformer CT-500 with specifications label on a white background Front View
Current Transformer CT-400
Current Transformer-400
Current Transformers accurately reduce high AC current levels to a safe, measurable output, enabling precise motor load monitoring, overcurrent detection, and seamless integration with Load Controls' power sensing solutions.
Current Transformer-400
Current Transformers accurately reduce high AC current levels to a safe, measurable output, enabling precise motor load monitoring, overcurrent detection, and seamless integration with Load Controls' power sensing solutions.

Three CT Types Available

  • Wound CT - primary winding connected directly in series with the conductor; magnitude of secondary current determined by turns ratio
  • Toroidal CT - no primary winding; current-carrying conductor threaded through the core window; split-core options available for easy installation without disconnecting the circuit
  • Bar-type CT - uses the actual cable or bus bar as the primary winding; fully insulated from high operating voltage and bolted directly to the current-carrying device

Key Specifications

  • Standard secondary output: 1A or 5A
  • Reduces high primary currents to safe, measurable secondary levels
  • Primary winding connected in series - non-invasive, no process interruption
  • Compatible with Load Controls' full range of power sensors and load controls
  • Split-core toroidal options available for retrofit installations without circuit disconnection

Important Safety Note - The secondary winding of a current transformer must never be left open-circuited while the primary is energised. Always short-circuit the secondary terminals before removing any connected instrument or load control.

$140.00
Buy Now
Current Transformer CT-500 with specifications label on a white background Front View
Current Transformer CT-300
Current Transformer-300
Current Transformers accurately reduce high AC current levels to a safe, measurable output, enabling precise motor load monitoring, overcurrent detection, and seamless integration with Load Controls' power sensing solutions.
Current Transformer-300
Current Transformers accurately reduce high AC current levels to a safe, measurable output, enabling precise motor load monitoring, overcurrent detection, and seamless integration with Load Controls' power sensing solutions.

Three CT Types Available

  • Wound CT - primary winding connected directly in series with the conductor; magnitude of secondary current determined by turns ratio
  • Toroidal CT - no primary winding; current-carrying conductor threaded through the core window; split-core options available for easy installation without disconnecting the circuit
  • Bar-type CT - uses the actual cable or bus bar as the primary winding; fully insulated from high operating voltage and bolted directly to the current-carrying device

Key Specifications

  • Standard secondary output: 1A or 5A
  • Reduces high primary currents to safe, measurable secondary levels
  • Primary winding connected in series - non-invasive, no process interruption
  • Compatible with Load Controls' full range of power sensors and load controls
  • Split-core toroidal options available for retrofit installations without circuit disconnection

Important Safety Note - The secondary winding of a current transformer must never be left open-circuited while the primary is energised. Always short-circuit the secondary terminals before removing any connected instrument or load control.

$140.00
Buy Now
Current Transformer CT-500 with specifications label on a white background Front View
Current Transformer CT-250
Current Transformer-250
Current Transformers accurately reduce high AC current levels to a safe, measurable output, enabling precise motor load monitoring, overcurrent detection, and seamless integration with Load Controls' power sensing solutions.
Current Transformer-250
Current Transformers accurately reduce high AC current levels to a safe, measurable output, enabling precise motor load monitoring, overcurrent detection, and seamless integration with Load Controls' power sensing solutions.

Three CT Types Available

  • Wound CT - primary winding connected directly in series with the conductor; magnitude of secondary current determined by turns ratio
  • Toroidal CT - no primary winding; current-carrying conductor threaded through the core window; split-core options available for easy installation without disconnecting the circuit
  • Bar-type CT - uses the actual cable or bus bar as the primary winding; fully insulated from high operating voltage and bolted directly to the current-carrying device

Key Specifications

  • Standard secondary output: 1A or 5A
  • Reduces high primary currents to safe, measurable secondary levels
  • Primary winding connected in series - non-invasive, no process interruption
  • Compatible with Load Controls' full range of power sensors and load controls
  • Split-core toroidal options available for retrofit installations without circuit disconnection

Important Safety Note - The secondary winding of a current transformer must never be left open-circuited while the primary is energised. Always short-circuit the secondary terminals before removing any connected instrument or load control.

$140.00
Buy Now
Current Transformer CT-500 with specifications label on a white background Front View
Current Transformer CT-200
Current Transformer-200
Current Transformers accurately reduce high AC current levels to a safe, measurable output, enabling precise motor load monitoring, overcurrent detection, and seamless integration with Load Controls' power sensing solutions.
Current Transformer-200
Current Transformers accurately reduce high AC current levels to a safe, measurable output, enabling precise motor load monitoring, overcurrent detection, and seamless integration with Load Controls' power sensing solutions.

Three CT Types Available

  • Wound CT - primary winding connected directly in series with the conductor; magnitude of secondary current determined by turns ratio
  • Toroidal CT - no primary winding; current-carrying conductor threaded through the core window; split-core options available for easy installation without disconnecting the circuit
  • Bar-type CT - uses the actual cable or bus bar as the primary winding; fully insulated from high operating voltage and bolted directly to the current-carrying device

Key Specifications

  • Standard secondary output: 1A or 5A
  • Reduces high primary currents to safe, measurable secondary levels
  • Primary winding connected in series - non-invasive, no process interruption
  • Compatible with Load Controls' full range of power sensors and load controls
  • Split-core toroidal options available for retrofit installations without circuit disconnection

Important Safety Note - The secondary winding of a current transformer must never be left open-circuited while the primary is energised. Always short-circuit the secondary terminals before removing any connected instrument or load control.

$140.00
Buy Now
Current Transformer CT-500 with specifications label on a white background Front View
Current Transformer CT-150
Current Transformer-150
Current Transformers accurately reduce high AC current levels to a safe, measurable output, enabling precise motor load monitoring, overcurrent detection, and seamless integration with Load Controls' power sensing solutions.
Current Transformer-150
Current Transformers accurately reduce high AC current levels to a safe, measurable output, enabling precise motor load monitoring, overcurrent detection, and seamless integration with Load Controls' power sensing solutions.

Three CT Types Available

  • Wound CT - primary winding connected directly in series with the conductor; magnitude of secondary current determined by turns ratio
  • Toroidal CT - no primary winding; current-carrying conductor threaded through the core window; split-core options available for easy installation without disconnecting the circuit
  • Bar-type CT - uses the actual cable or bus bar as the primary winding; fully insulated from high operating voltage and bolted directly to the current-carrying device

Key Specifications

  • Standard secondary output: 1A or 5A
  • Reduces high primary currents to safe, measurable secondary levels
  • Primary winding connected in series - non-invasive, no process interruption
  • Compatible with Load Controls' full range of power sensors and load controls
  • Split-core toroidal options available for retrofit installations without circuit disconnection

Important Safety Note - The secondary winding of a current transformer must never be left open-circuited while the primary is energised. Always short-circuit the secondary terminals before removing any connected instrument or load control.

$140.00
Buy Now
Current Transformer CT-500 with specifications label on a white background Front View
Current Transformer CT-100
Current Transformer-100
Current Transformers accurately reduce high AC current levels to a safe, measurable output, enabling precise motor load monitoring, overcurrent detection, and seamless integration with Load Controls' power sensing solutions.
Current Transformer-100
Current Transformers accurately reduce high AC current levels to a safe, measurable output, enabling precise motor load monitoring, overcurrent detection, and seamless integration with Load Controls' power sensing solutions.

Three CT Types Available

  • Wound CT - primary winding connected directly in series with the conductor; magnitude of secondary current determined by turns ratio
  • Toroidal CT - no primary winding; current-carrying conductor threaded through the core window; split-core options available for easy installation without disconnecting the circuit
  • Bar-type CT - uses the actual cable or bus bar as the primary winding; fully insulated from high operating voltage and bolted directly to the current-carrying device

Key Specifications

  • Standard secondary output: 1A or 5A
  • Reduces high primary currents to safe, measurable secondary levels
  • Primary winding connected in series - non-invasive, no process interruption
  • Compatible with Load Controls' full range of power sensors and load controls
  • Split-core toroidal options available for retrofit installations without circuit disconnection

Important Safety Note - The secondary winding of a current transformer must never be left open-circuited while the primary is energised. Always short-circuit the secondary terminals before removing any connected instrument or load control.

$140.00
Buy Now
Current Transformer CT-500 with specifications label on a white background Front View
Current Transformer CT-75
Current Transformer-75
Current Transformers accurately reduce high AC current levels to a safe, measurable output, enabling precise motor load monitoring, overcurrent detection, and seamless integration with Load Controls' power sensing solutions.
Current Transformer-75
Current Transformers accurately reduce high AC current levels to a safe, measurable output, enabling precise motor load monitoring, overcurrent detection, and seamless integration with Load Controls' power sensing solutions.

Three CT Types Available

  • Wound CT - primary winding connected directly in series with the conductor; magnitude of secondary current determined by turns ratio
  • Toroidal CT - no primary winding; current-carrying conductor threaded through the core window; split-core options available for easy installation without disconnecting the circuit
  • Bar-type CT - uses the actual cable or bus bar as the primary winding; fully insulated from high operating voltage and bolted directly to the current-carrying device

Key Specifications

  • Standard secondary output: 1A or 5A
  • Reduces high primary currents to safe, measurable secondary levels
  • Primary winding connected in series - non-invasive, no process interruption
  • Compatible with Load Controls' full range of power sensors and load controls
  • Split-core toroidal options available for retrofit installations without circuit disconnection

Important Safety Note - The secondary winding of a current transformer must never be left open-circuited while the primary is energised. Always short-circuit the secondary terminals before removing any connected instrument or load control.

$140.00
Buy Now
Current Transformer CT-500 with specifications label on a white background Front View
Current Transformer CT-60
Current Transformer-60
Current Transformers accurately reduce high AC current levels to a safe, measurable output, enabling precise motor load monitoring, overcurrent detection, and seamless integration with Load Controls' power sensing solutions.
Current Transformer-60
Current Transformers accurately reduce high AC current levels to a safe, measurable output, enabling precise motor load monitoring, overcurrent detection, and seamless integration with Load Controls' power sensing solutions.

Three CT Types Available

  • Wound CT - primary winding connected directly in series with the conductor; magnitude of secondary current determined by turns ratio
  • Toroidal CT - no primary winding; current-carrying conductor threaded through the core window; split-core options available for easy installation without disconnecting the circuit
  • Bar-type CT - uses the actual cable or bus bar as the primary winding; fully insulated from high operating voltage and bolted directly to the current-carrying device

Key Specifications

  • Standard secondary output: 1A or 5A
  • Reduces high primary currents to safe, measurable secondary levels
  • Primary winding connected in series - non-invasive, no process interruption
  • Compatible with Load Controls' full range of power sensors and load controls
  • Split-core toroidal options available for retrofit installations without circuit disconnection

Important Safety Note - The secondary winding of a current transformer must never be left open-circuited while the primary is energised. Always short-circuit the secondary terminals before removing any connected instrument or load control.

$140.00
Buy Now
Percent load meter with 'Load Controls Incorporated' branding on a white background Front View
Pump Load Monitor PLM
The PLM Pump Load Monitor delivers continuous true power monitoring for industrial pumps, detecting dry running, loss of prime, cavitation, and overload conditions before they cause costly equipment damage.
The PLM Pump Load Monitor delivers continuous true power monitoring for industrial pumps, detecting dry running, loss of prime, cavitation, and overload conditions before they cause costly equipment damage.

Monitors and Detects

  • Dry Running / Loss of Prime
  • Cavitation / Overloads
  • Jammed Impeller / Loss of Load

Key Specifications

  • True power monitoring - more accurate and sensitive than current sensing alone
  • Non-invasive - installs at motor control panel with no process fluid contact
  • Compatible with all pump types - centrifugal, positive displacement, mag-drive
  • Suitable for water treatment, chemical, food and beverage, and industrial applications
$195.00
Buy Now
Pump Load Monitor PLM-10V
Pump Load Monitor PLM-10V
The PLM Pump Load Monitor delivers continuous true power monitoring for industrial pumps, detecting dry running, loss of prime, cavitation, and overload conditions before they cause costly equipment damage.
The PLM Pump Load Monitor delivers continuous true power monitoring for industrial pumps, detecting dry running, loss of prime, cavitation, and overload conditions before they cause costly equipment damage.

Monitors and Detects

  • Dry Running / Loss of Prime
  • Cavitation / Overloads
  • Jammed Impeller / Loss of Load

Key Specifications

  • True power monitoring - more accurate and sensitive than current sensing alone
  • Non-invasive - installs at motor control panel with no process fluid contact
  • Compatible with all pump types - centrifugal, positive displacement, mag-drive
  • Suitable for water treatment, chemical, food and beverage, and industrial applications
$195.00
Buy Now
Pump Load Monitor PLM-4-20
Pump Load Monitor PLM-4-20
The PLM Pump Load Monitor delivers continuous true power monitoring for industrial pumps, detecting dry running, loss of prime, cavitation, and overload conditions before they cause costly equipment damage.
The PLM Pump Load Monitor delivers continuous true power monitoring for industrial pumps, detecting dry running, loss of prime, cavitation, and overload conditions before they cause costly equipment damage.

Monitors and Detects

  • Dry Running / Loss of Prime
  • Cavitation / Overloads
  • Jammed Impeller / Loss of Load

Key Specifications

  • True power monitoring - more accurate and sensitive than current sensing alone
  • Non-invasive - installs at motor control panel with no process fluid contact
  • Compatible with all pump types - centrifugal, positive displacement, mag-drive
  • Suitable for water treatment, chemical, food and beverage, and industrial applications
$195.00
Buy Now
Digital load meter DM-100 with red display on a white background
Digital Load Meter DM-100
Digital Load Meter - Selectable 0-100% Load or Horsepower or KW, 4-20mA, 0-1 mA, 0-5V, and 0-10V Inputs
The DM-100 Digital Load Meter displays real-time motor load in percent, horsepower, kilowatts, or watts — with a built-in Peak Emphasis Circuit for accurate monitoring of fast-changing loads.
Digital Load Meter - Selectable 0-100% Load or Horsepower or KW, 4-20mA, 0-1 mA, 0-5V, and 0-10V Inputs
The DM-100 Digital Load Meter displays real-time motor load in percent, horsepower, kilowatts, or watts — with a built-in Peak Emphasis Circuit for accurate monitoring of fast-changing loads.

Display Options: Percent 0–100% / Horsepower / Kilowatts or Watts

Input Options: 0–10V / 0–5V / 0–1mA / 4–20mA

Key Specifications

  • Peak Emphasis Circuit — captures and holds peak load for reliable visual reading
  • Switchable between Peak Emphasis and Average Value modes
  • Panel cut-out: 1-7/16" x 4-3/16" (36mm x 107mm)
  • Dip switch configurable for calibration, display mode, and decimal point settings
$325.00
Buy Now

Pricing effective July 1, 2025 and subject to change without notice. Click to download a PDF of our price list.
