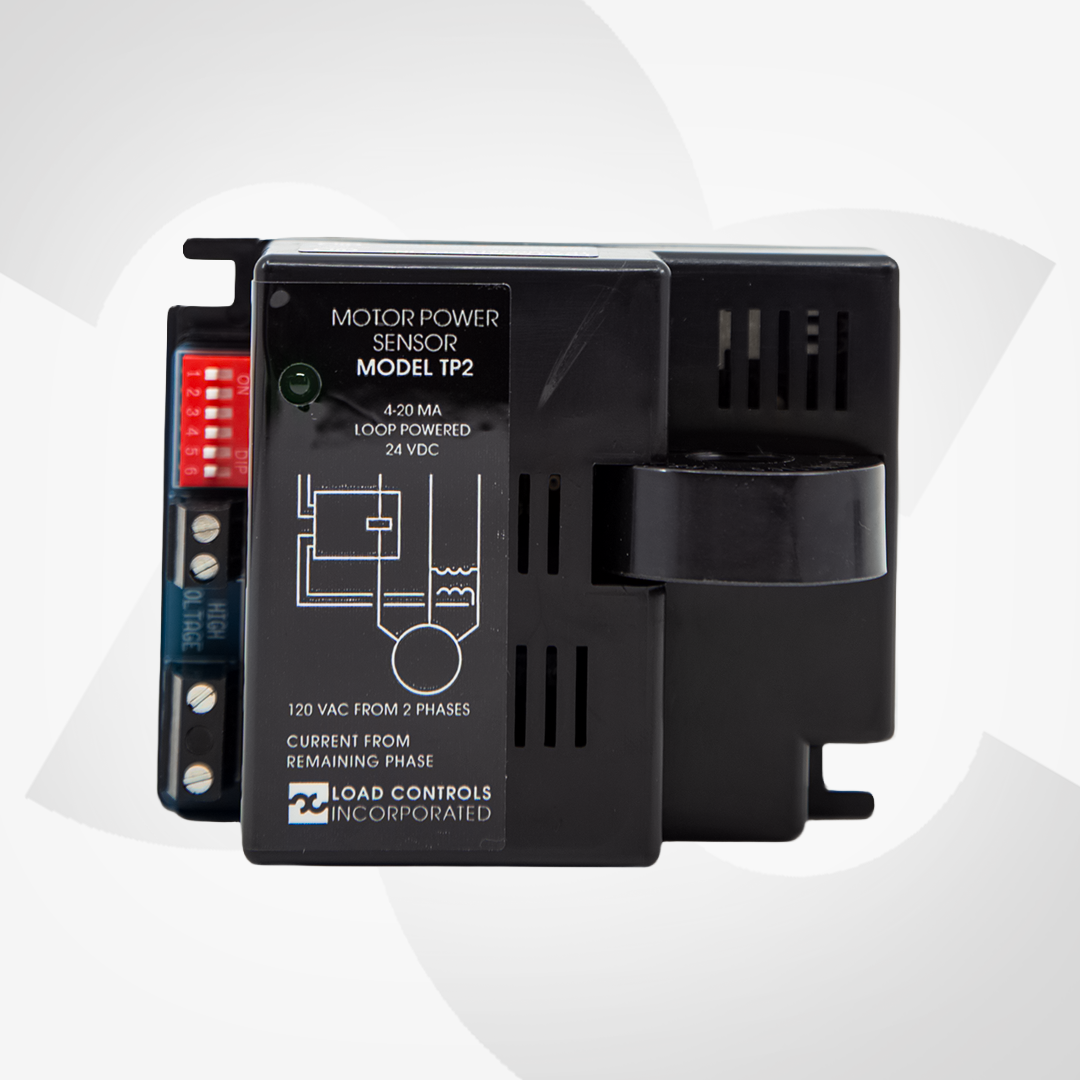

Compact Motor power sensor TP-2 with Load Controls Incorporated branding on a white background

TP-2 Single Phase Motor Power Sensor

$550.00
Skip to product information
Compact Motor power sensor TP-2 with Load Controls Incorporated branding on a white background
  • Compact Motor power sensor TP-2 with Load Controls Incorporated branding on a white background
TP-2 Single Phase Motor Power Sensor

SKU:

TP-2-SP

Lead Time: 5 - 7 days

Lead Time: 5 - 7 days

TP-2 Single Phase Motor Power Sensor

$550.00

30% restocking fee applies to all returns | 12 Month Warranty

Compact Motor Power Sensor for motors up to 25HP for Single Phase Power
The TP-2 Single Phase delivers true motor power monitoring for single phase motors - compact, low-cost, and the established standard across the world's largest chemical manufacturing plants.

**Shipping calculated at checkout
For International Shipping Contact Us at 888-600-3247

The TP-2 Single Phase Motor Power Sensor brings reliable true motor power monitoring to single phase motor applications in a compact, cost-effective design. The established standard for motor power sensing across the world's largest chemical manufacturing plants, the TP-2 Single Phase fits small motor starter enclosures where larger sensors won't, with a DIN-rail mounting option for added installation flexibility. From detecting dry running and overloads to monitoring viscosity and process conditions, the TP-2 Single Phase delivers full true power monitoring capability for single phase environments without complexity or compromise.



Key Specifications

  • Designed specifically for single phase motor applications
  • Purpose-built for small motor starter enclosures
  • DIN-rail mounting option for flexible installation
  • True power measurement more accurate and sensitive than current sensing alone
  • The established standard for the world's largest chemical manufacturing plants
  • Low-cost true power monitoring without compromise on performance

Lead Time: 5 - 7 days
Product Weight: 54.4 Oz

Reference Tools

Tp 2 data sheet e39ebb62 9498 429f abe0 80ae0883e8d7.pdf

Tp 2 data sheet e39ebb62 9498 429f abe0 80ae0883e8d7.pdf

Using motor power data to create a climate…

View Document

Installation Guides

Tp 2 single phase.pdf

Tp 2 single phase.pdf

Using motor power data to create a climate…

View Document
Tp 2 wiring diagram.pdf

Tp 2 wiring diagram.pdf

Using motor power data to create a climate…

View Document
Tp 2 dimensions.pdf

Tp 2 dimensions.pdf

Using motor power data to create a climate…

View Document
Tp 2 installation.pdf

Tp 2 installation.pdf

Using motor power data to create a climate…

View Document

Related Videos

People Also Buy:

FAQs

Q: Why was the TP-2 designed specifically for compact cabinets?

Many industrial motor control panels, particularly Size 1 cabinets don't have space for standard-sized sensors. The TP-2 was purpose-built to deliver full true power monitoring in installations where space is at a premium.


Q: What motor sizes does the TP-2 support?

The TP-2 covers motors from under 1HP to over 350HP, making it suitable for the full range of motor sizes found in process manufacturing environments.


Q: What fault conditions can the TP-2 detect?

The TP-2 detects dry running, overheads, jams, viscosity shifts, process start and end conditions, and loss of load all through changes in true motor power draw.


Q: Does the TP-2 work on both single-phase and three-phase motors?

Yes. The TP-2 is available in both single-phase and three-phase configurations.


Q: How does the TP-2 integrate with existing control systems?

The TP-2 outputs standard 0–10V and 4–20mA analog signals, integrating directly with existing PLCs, DCS, and SCADA systems without modification.
