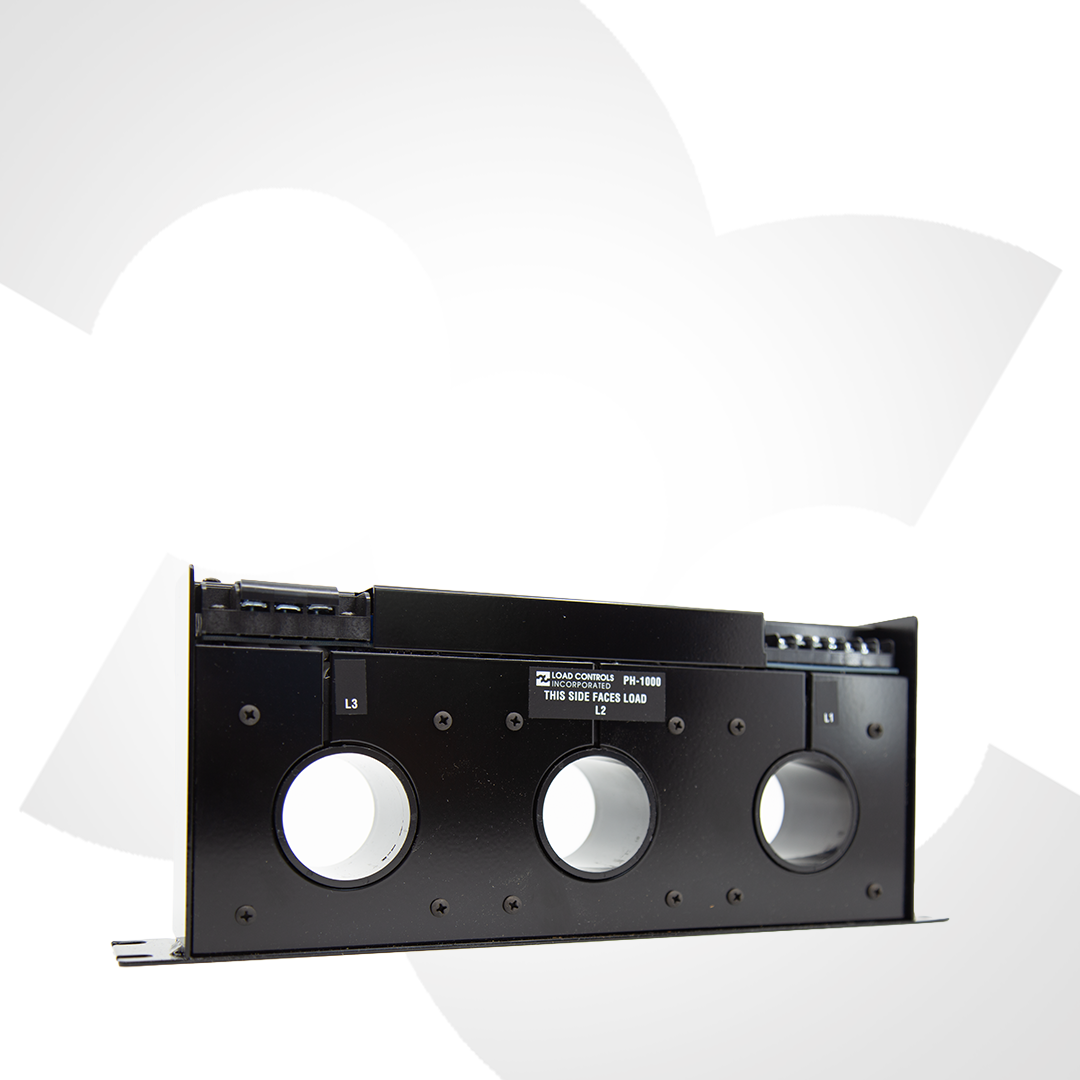

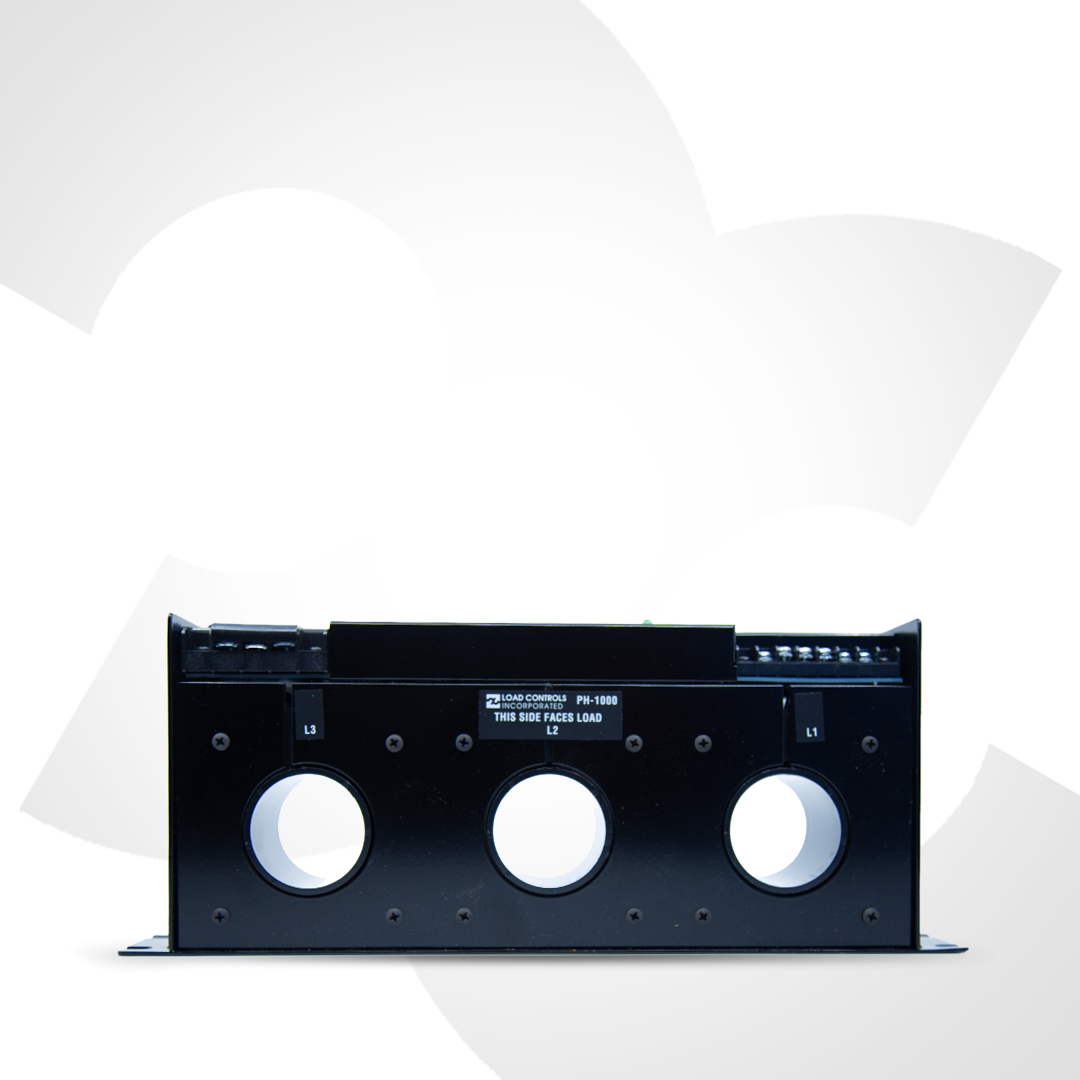

Large Capacity for Big Loads Power Cell PH-1000

$1,670.00

30% restocking fee applies to all returns | 12 Month Warranty

Power Cell Power Transducer for sensing Large Three Phase Power
The PH-3 and PH-1000 power cells deliver true motor power monitoring for high-demand machine tool and large industrial motor applications from ultra-fast spindle protection to motors up to 1000HP.

**Shipping calculated at checkout
For International Shipping Contact Us at 888-600-3247

The PH-3 Series and PH-1000 Power Cells extend Load Controls' true power monitoring capability to the most demanding ends of the industrial spectrum. The PH-3A is purpose-built for machine tool monitoring, delivering ultra-fast response to spindle load changes, tool breakage, and overload conditions with no PTs or CTs to install. For large industrial motors, the PH-1000 brings the same proven true power monitoring capability to motors up to 1000HP, with 1-3/4" conductor openings to accommodate the largest motor feeds. Both models are self-contained, non-invasive, and install directly at the motor control panel.

Monitors motors up to 1000HP
1-3/4" conductor openings for large motor feeds
Purpose-built for large industrial motor environments where standard sensors fall short

Lead Time: 5 - 7 days
Product Weight: 54.4 Oz

Reference Tools

Data sheet power cells a53cb2f9 e0c3 48da ae29 79aaac737150.pdf

Using motor power data to create a climate…

View Document

People Also Buy:

FAQs

Q: What makes the UPC different from a standard current sensor?

Current sensors only measure amps, which can be misleading when power factor changes. The UPC measures true power in horsepower, giving a far more accurate and sensitive picture of actual motor load.

Q: Which motor types is the UPC compatible with?

The UPC works with 3-phase, single-phase, AC, DC, fixed frequency, and variable frequency motors, covering virtually every motor type found in industrial environments.

Q: How do I know which UPC model is right for my motor size?

The UPC family covers motors from under 1HP to 150HP. For larger motors, the PH-1000 is available. Our team can help match the right model to your specific motor and application.

Q: Can UPC data be integrated into my existing control system?

Yes. The UPC outputs standard 0–10V and 4–20mA analog signals. The UPC-MB variant adds Modbus connectivity for direct integration with SCADA, DCS, and IIoT platforms.

Q: Is the UPC suitable for safety-critical applications?

Yes. All UPC models are UL rated and SIL-2 capable, meeting the safety integrity requirements of chemical, pharmaceutical, and other demanding process environments.
