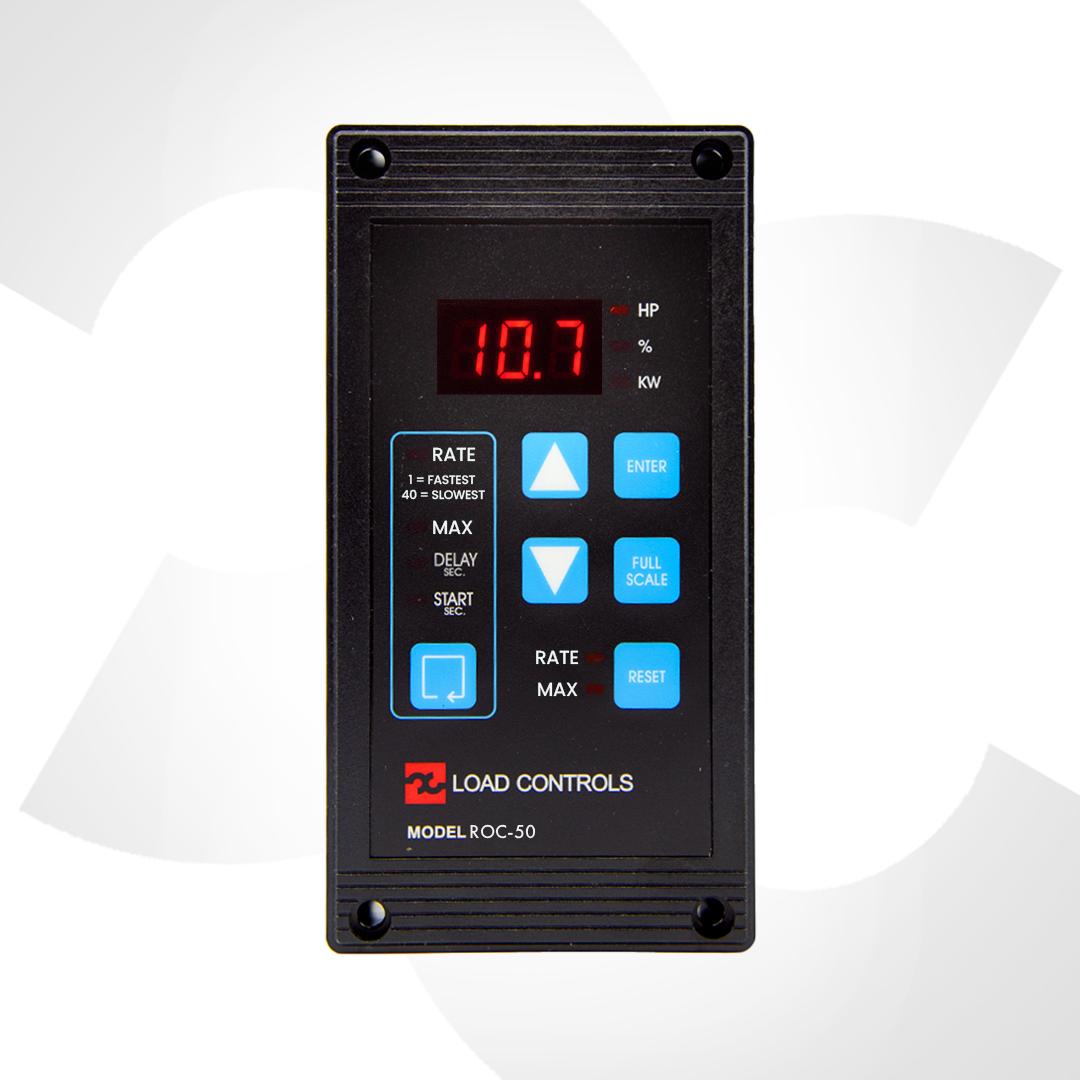

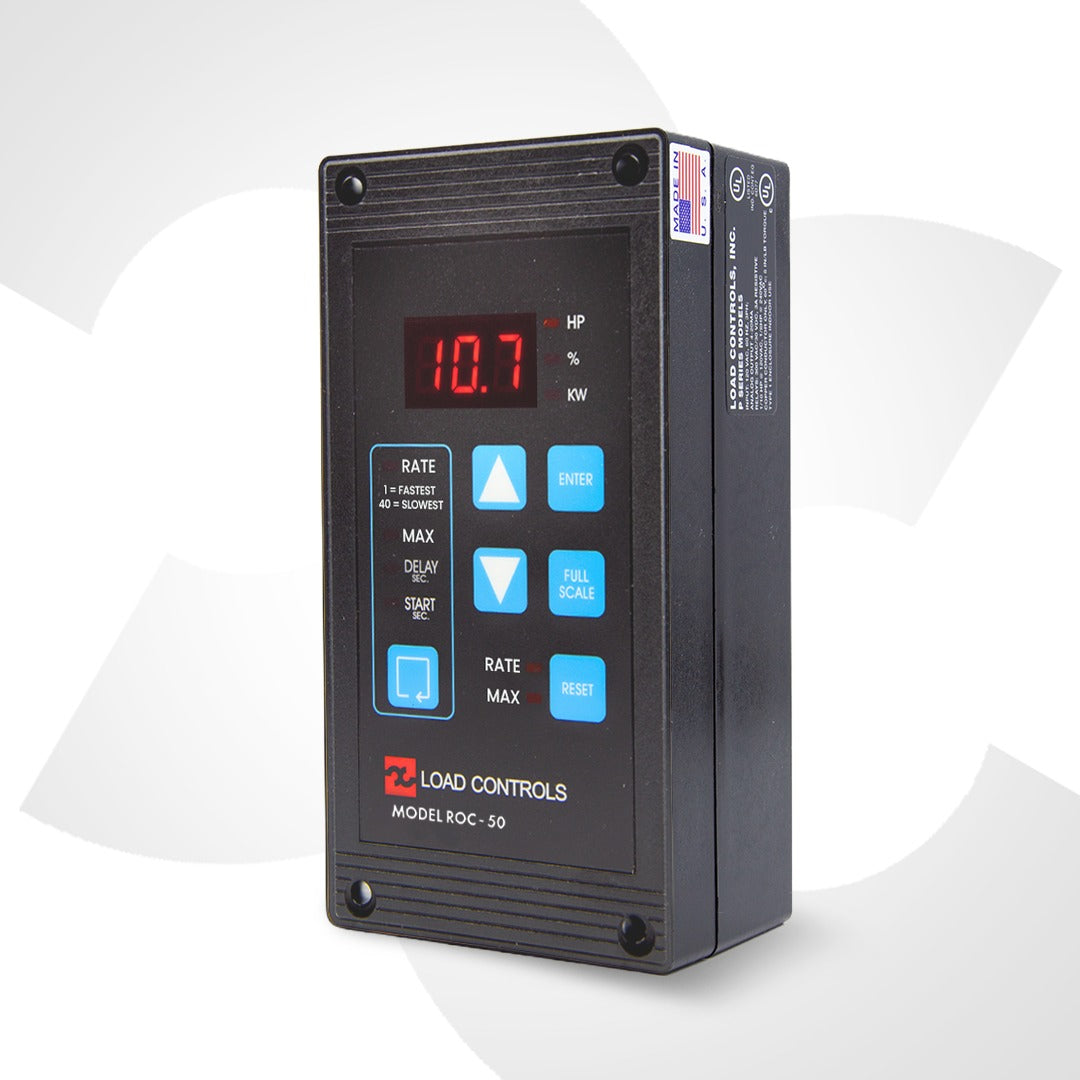

Rate of Change Load Control ROC-50

Name: Rate of Change Load Control ROC-50
Brand: Load Controls LLC
SKU: ROC-50 Rate of Change
Price: 975.00 USD
Availability: InStock

$975.00

30% restocking fee applies to all returns | 12 Month Warranty

Rate of Change, measures the power similar to the PMP-25 (part of the P-series) but will trip when there is a change in the average Fast Response Load Controls, Fixed Frequency
The ROC-50 monitors true motor power with dual adjustable set points — limiting both sudden load changes and total maximum load for comprehensive motor protection.

**Shipping calculated at checkout
For International Shipping Contact Us at 888-600-3247

The ROC-50 Rate of Change Load Control monitors true motor power by sensing volts x amps x power factor — delivering far greater sensitivity than current-based monitoring alone. With two independent adjustable set points, the ROC-50 provides dual-layer protection: the Rate set point limits sudden increases in load regardless of total load level, while the Max set point limits total load — catching both rapid load spikes and sustained overloads before they cause equipment damage. Featuring a built-in digital load display, 4–20mA analog output, and three reset options, the ROC-50 is a complete, flexible motor protection solution for motors up to 50HP directly, and up to 500HP with an external current transformer.

Two Set Points

Rate — limits sudden increases in load regardless of total load
Max — limits total load

Key Specifications

Capacity: up to 50HP directly / up to 500HP with external CT
Response time: 25 milliseconds
Digital load display: 0.4" LED 3-digit
Analog output: 4–20mA (powered by ROC-50)
Relay outputs: 2 x Form C, 3A @ 300VAC — latching
Enclosure: NEMA 4/4X glass-filled polycarbonate
Timers: Start-up (0–90 sec) and Trip Delay (0–90 sec)
Display: configurable for HP, % or KW
Three reset options: manual, remote, or automatic

Lead Time: 5 - 7 days
Product Weight: 54.4 Oz

Installation Guides

Roc 50 installation guide.pdf

Using motor power data to create a climate…

View Document

People Also Buy:

FAQs

Q: What is the difference between the Rate and Max set points on the ROC-50?

The Rate set point responds to the speed of load change — triggering protection when load rises too suddenly, regardless of total level. The Max set point triggers when total motor load exceeds the configured maximum threshold.

Q: Can the ROC-50 be used with motors larger than 50HP?

Yes. With an external current transformer, the ROC-50 can monitor motors up to 500HP. The 5-amp CT secondary passes through the Range Finder Toroid for accurate power sensing.

Q: What reset options does the ROC-50 offer?

The ROC-50 can be reset manually via the front panel button, remotely via a remotely located button or relay, or automatically via a jumper — giving full flexibility for different installation requirements.

Q: Is the ROC-50 compatible with variable frequency drives?

No. The ROC-50 is not suitable for VFD applications. For VFD-driven motors, Load Controls offers dedicated VFD-compatible models.

Q: What does the Start-up Timer do?

The Start-up Timer bypasses the control during motor start-up to prevent false trips from current inrush — timing begins the moment the motor starts and the Start-up LED remains lit until the period is complete.
