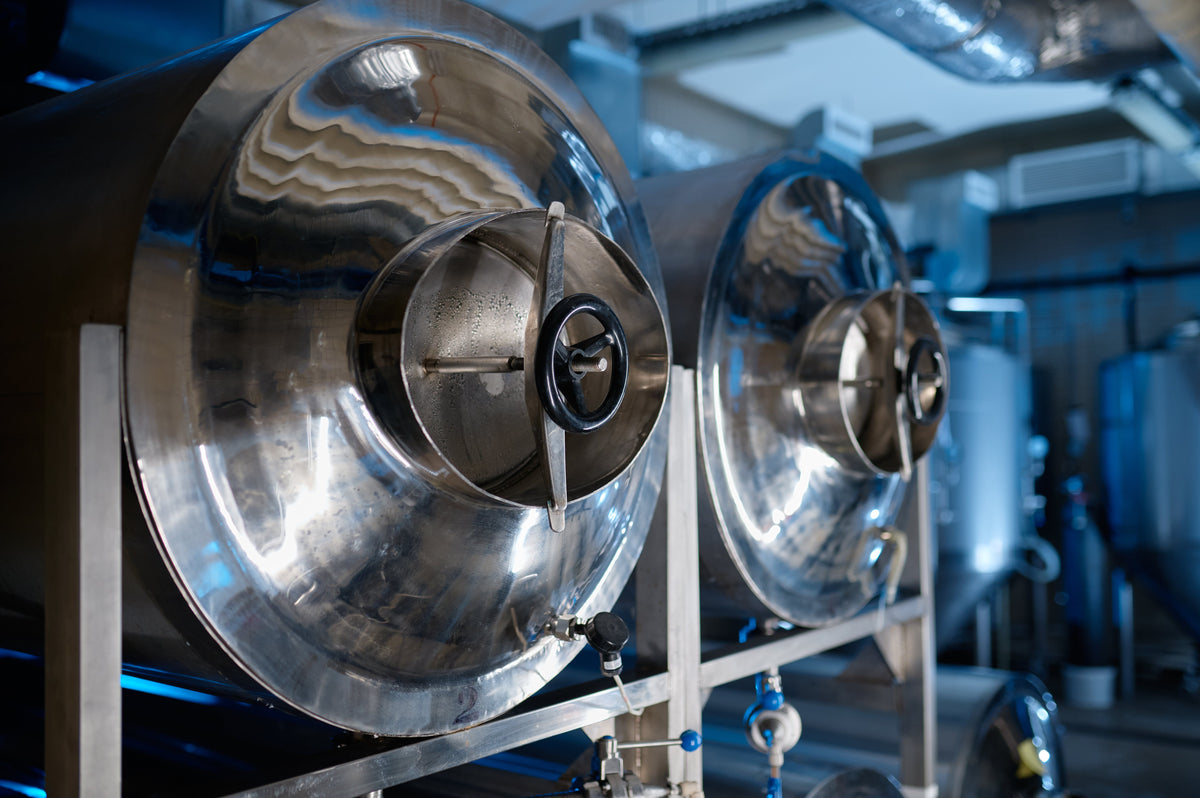

How Power Sensors Detect Broken Agitator Blades Inside Sealed Tanks

In process manufacturing, identifying mechanical failures inside a sealed tank is a significant challenge, physical inspection isn't possible without halting production and breaking the seal. A motor power sensor offers a highly effective, non-invasive solution by monitoring the "true power" the motor draws while driving the agitator. If an agitator blade breaks, the mechanical resistance against the motor drops instantly, since less surface area is moving through the fluid. This shift shows up immediately in the motor load data as a distinct drop in horsepower, letting operators identify the failure without ever touching the tank or the process media.

What Happens to Motor Power When an Agitator Blade Breaks?

• Sudden Drop in Workload: When a blade breaks or detaches, the motor performs less work to maintain speed, causing the measured horsepower (HP) or kilowatts (kW) to drop sharply.
• Superior Sensitivity: True motor power measurement is up to 10 times more sensitive than measuring current (amps) alone. An ammeter might show a negligible change, while a power sensor detects the loss of load with high precision.
• Electronic Shear Pin Action: Power sensors can function as an "electronic shear pin", automatically tripping a relay to stop the process or sound an alarm the moment a loss of load is detected.
• Safe, Non-Invasive Installation: Sensors are installed in the motor control cabinet, not inside the tank, keeping the electronics away from the high temperatures, pressures, or hazardous chemicals found in sealed environments.

Close-up of a motor control cabinet with a power sensor/relay installed

Which Sensors Are Best for Agitator Monitoring?

Load Controls offers a specialized portfolio of sensors built to capture the subtle power shifts that indicate internal component failure in sealed mixing systems.

• Universal Power Cell (UPC): A versatile motor power sensor that uses balanced Hall Effect sensors to calculate true power, even in complex environments using variable frequency drives.
• PMP-25 Pump Load Control: Ideal for pumps, and also an industry standard for motor protection tasks generally, offering adjustable "Low Trip" set points that detect a loss of load from a broken blade.
• TP-2 Compact Motor Power Sensor: Fits easily into small motor starter enclosures and provides loop-powered 4-20mA feedback proportional to motor power.
• PFR-1550 Single Set Point Control: A fast-response digital control designed specifically to protect valuable equipment from overloads or loss-of-load conditions.


Where Is Agitator Power Monitoring Used in Industry?

Detecting internal failures through motor power data is a vital practice in industries where process integrity and containment are paramount.

• Chemical and Pharmaceutical Mixing: In sealed reactors, a broken agitator can lead to incomplete reactions or lumpy materials. Power sensors ensure batch consistency by identifying blade failures instantly.
• Wastewater Sludge Collectors: Utilities use power monitoring to protect highly geared motors moving heavy material; detecting a broken arm or blade is critical to preventing further mechanical damage.
• Food and Beverage Production: For products like dough or ice cream, power sensors profile the mixing process to confirm ingredients are combined correctly, a sudden power drop serves as a red flag for a broken agitator.
• Explosive Environments: In chemical plant applications, such as mercury-cathode cells, detecting a detached component is vital to preventing potentially explosive conditions.

Wastewater treatment facility or chemical processing plant with large tanks

How Does This Data Support Predictive Maintenance?

Beyond failure detection, capturing real-time load data provides the metrics needed to improve maintenance awareness and overall plant efficiency.

• Detecting System Degradation: Gradual shifts in the agitator's power curve over time can indicate bearing wear or drive mechanism misalignment before a total failure occurs.
• Right-Sizing Initiatives: Load data often reveals that mixing motors are significantly oversized. Right-sizing these motors can lead to major energy savings and improved power factor.
• Energy Bill Reduction: Understanding the exact cost of operating a motor (kWh) lets facilities build a roadmap to lower energy costs through load shifting or peak demand strategies.
• Accessing Utility Rebates: Investing in advanced motor power sensors for process optimization can often qualify facilities for rebates from local energy providers.

About Load Controls and Industrial Control Solutions

Load Controls, part of Industrial Control Solutions, specializes in the manufacture of load controls, pump controls, universal power sensors, and other sensors. The company prides itself on the diversity and quality of its product offering and the industry leadership position its brands have held for over 40 years.

As a Service-Disabled Veteran-Owned Small Business, Industrial Control Solutions believes in applying the same principles of military service to its everyday practices: tireless dedication, rigorous standards of quality, and faithfulness to its values and mission. This translates into providing a high-quality product to exact specifications that always exceeds performance expectations.

Industrial Control Solutions is built on its extensive offering of high-quality, customized switches, sensors, and thermocouples, custom-built and shipped to exact specifications based on application, media environment, and other performance requirements.

Industrial Control Solutions is fiercely committed to its clients, particularly those who have been loyal partners throughout its 40+ years of operation, staying true to the core values the brand was built on: high-quality products with a focus on customer service.

Load Controls is ISO 9001:2015 certified, giving customers confidence that internal processes and products are held to the highest standards of quality and rigorous testing.

Our product portfolio spans specialized USA-manufactured lines:

• Whitman Controls - Pressure switches, vacuum switches, differential pressure switches, temperature switches, continuous level transmitters, and more.
• Thomas Products - Flow switches, level switches, pump controls, multi-level switches, visual indicators, and related accessories.
• Duro-Sense - Platinum and Noble thermocouples, RTDs, and ISO 17025-calibrated wire sales.

Frequently Asked Questions

How do you detect a broken agitator blade inside a sealed tank?

By monitoring the true motor power (horsepower or kilowatts) driving the agitator. A broken blade reduces resistance against the motor, causing an immediate, measurable drop in power without needing to open the tank.

Why is motor power monitoring better than measuring current (amps)?

True power measurement is up to 10 times more sensitive than current alone. A power sensor can detect a loss of load that an ammeter would miss entirely.

What is an "electronic shear pin"?

It's a function of power sensors that automatically trips a relay or alarm the instant a loss of load is detected, acting like a mechanical shear pin but without physical wear or replacement.

Where are these power sensors installed?

Inside the motor control cabinet not inside the tank keeping the sensor away from heat, pressure, and hazardous process media.

What industries use agitator power monitoring?

Chemical and pharmaceutical manufacturing, wastewater treatment, food and beverage production, and other processes involving sealed or hazardous mixing environments.

Can motor power sensors help reduce energy costs?

Yes. Load data often reveals oversized motors, and right-sizing them along with load-shifting strategies can lower energy bills and may qualify for utility rebates.
