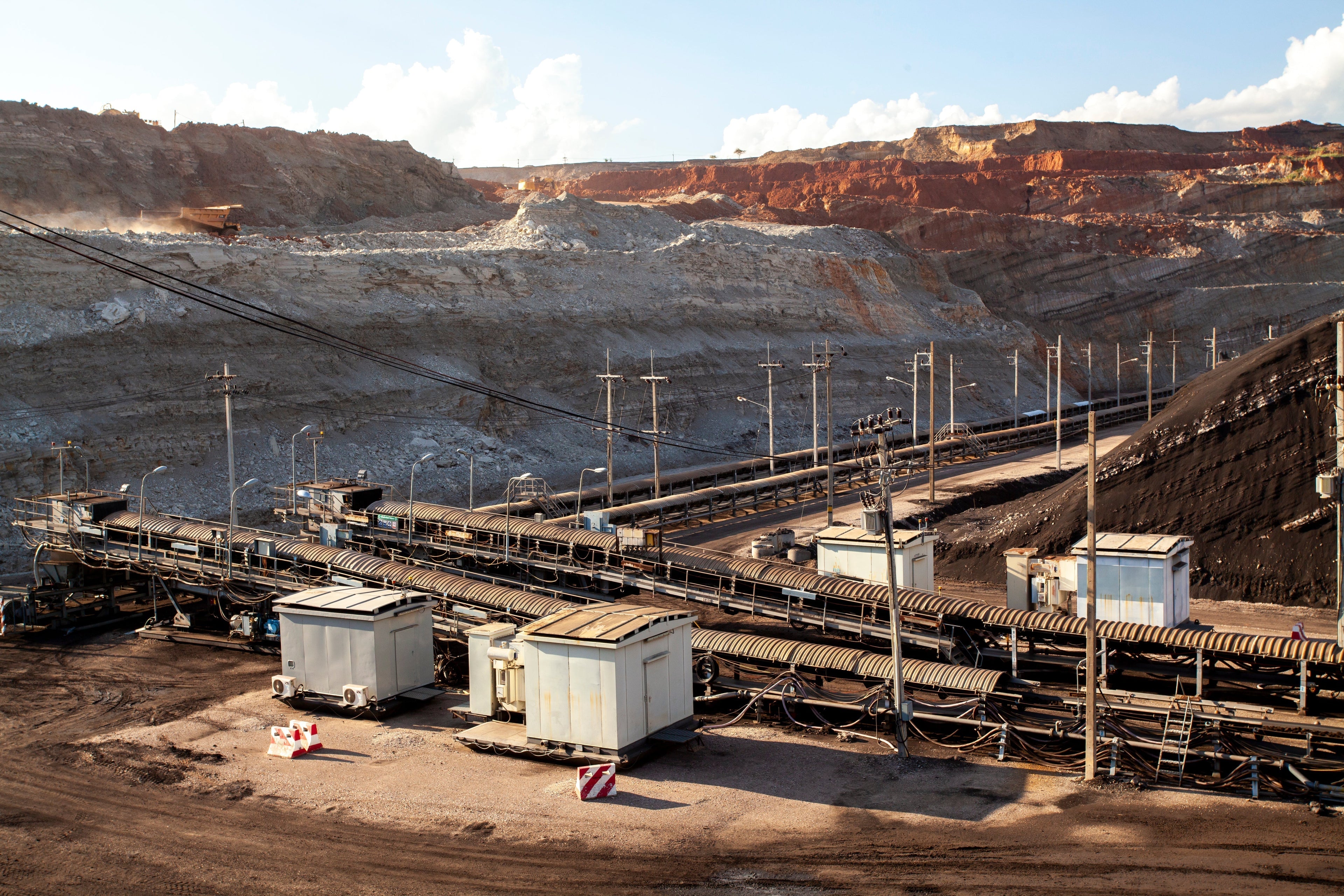

In the rugged environment of a mining operation, conveyors and crushers are the primary workhorses that move and process massive quantities of ore and rock. These systems are constantly subjected to extreme mechanical stress, and a single oversized rock or foreign object can lead to a catastrophic jam. Such events do more than just stall production, they can snap drive chains, strip gearbox teeth, or burn out expensive high-horsepower motors.

Motor power monitoring provides a high-resolution safety net by acting as an electronic shear pin. By measuring the true power consumed by the motor, sensors can detect the millisecond an obstruction enters the system and trigger a shutdown before the mechanical force causes permanent damage.

Why Do Rock Jams Damage Mining Crushers and Conveyors So Quickly?

• Instantaneous Jam Detection: When a crusher or conveyor encounters an uncrushable object, the motor workload spikes immediately. A digital power sensor identifies this surge and can halt the motor in as little as twenty-five milliseconds, preventing structural failure.
• Sensitivity to Gradual Overloads: As material density increases or moisture levels rise, the motor must perform more work. True power monitoring is up to ten times more sensitive than measuring current alone, allowing operators to adjust feed rates before an overload occurs.
• Electronic Shear Pin Benefits: Mechanical shear pins are designed to fail to protect the motor, but replacing them in a mine is a labor-intensive process. A load control stops the motor before the pin breaks, allowing for faster clearing of the jam and a quicker return to operation.
• Non-Invasive Reliability: Power sensors are installed within the motor control cabinet, keeping the sensitive electronics isolated from the abrasive dust, extreme vibrations, and harsh weather conditions of the mining site.

What Sensors and Controllers Are Built for Rugged Mining Infrastructure?

Load Controls provides advanced sensors and digital controllers designed to handle the massive scales and high voltages typical of global mining operations.

Where Is Motor Power Monitoring Used in Ore and Mineral Processing?

Maintaining the integrity of material handling equipment is vital for facility uptime and profitability in high-volume mining and quarry operations.

• Primary and Secondary Crusher Protection: Power sensors monitor the real-time torque requirements of jaw and cone crushers, protecting the drive shafts and eccentric bearings from the impact of uncrushable debris.
• Overland Conveyor Monitoring: Long-distance conveyors are prone to belt slips or jams. Load controls detect the resulting power shifts to prevent belt tearing and motor burnout.
• Vibratory Feeder Synchronization: Monitoring the power draw of feeders ensures that material is entering the crusher at a consistent rate, maximizing throughput while preventing surges.
• Slurry Pump Dry Run Prevention: Pumps moving mineral slurry are prone to running dry if a line clogs or a tank empties. Power sensors detect the resulting drop in workload to prevent expensive seal and bearing failure.

What Is the Financial and Maintenance Impact of Power Monitoring in Mining?

Monitoring motor power on mining equipment provides the metrics needed to reduce operational costs and justify investments in process automation.

• Reducing Costly Downtime: By preventing mechanical failures and broken drive components, mines can maintain higher production availability and avoid the massive costs of emergency field repairs.
• Analyzing True Energy Costs: Viewing motor power data over time in kilowatt-hours allows mining firms to understand the exact energy cost of their crushing operations and identify efficiency gains.
• Predictive Maintenance Insights: Vertical shifts in a conveyor's power curve over time can indicate bearing wear or belt misalignment, allowing maintenance teams to address issues before they lead to total failure.
• Utility Rebate Access: Investing in advanced motor controls for process optimization and energy savings may qualify your facility for rebates from local energy providers.

About Load Controls and Industrial Control Solutions

Load Controls, part of Industrial Control Solutions, specializes in the manufacture of load controls, pump controls, universal power sensors, and other sensors. The company prides itself on the diversity and quality of its product offering and the industry leadership position its brands have held for over 40 years.

As a Service-Disabled Veteran-Owned Small Business, Industrial Control Solutions believes in applying the same principles of military service to its everyday practices: tireless dedication, rigorous standards of quality, and faithfulness to its values and mission. This translates into providing a high-quality product to exact specifications that always exceeds performance expectations.

Industrial Control Solutions is built on its extensive offering of high-quality, customized switches, sensors, and thermocouples, custom-built and shipped to exact specifications based on application, media environment, and other performance requirements.

Industrial Control Solutions is fiercely committed to its clients, particularly those who have been loyal partners throughout its 40+ years of operation, staying true to the core values the brand was built on: high-quality products with a focus on customer service.

Load Controls is ISO 9001:2015 certified, giving customers confidence that internal processes and products are held to the highest standards of quality and rigorous testing.

Our product portfolio spans specialized USA-manufactured lines:

• Whitman Controls - Pressure switches, vacuum switches, differential pressure switches, temperature switches, continuous level transmitters, and more.
• Thomas Products - Flow switches, level switches, pump controls, multi-level switches, visual indicators, and related accessories.
• Duro-Sense - Platinum and Noble thermocouples, RTDs, and ISO 17025-calibrated wire sales.

Frequently Asked Questions

How fast can a power sensor stop a crusher motor during a jam?

A digital power sensor can detect an uncrushable object and halt the motor in as little as twenty-five milliseconds. This rapid response is fast enough to prevent the mechanical shock from reaching drive chains, gearboxes, or bearings.

Is motor power monitoring more effective than current monitoring alone?

Yes. True power monitoring accounts for both voltage and current, making it up to ten times more sensitive to load changes than current monitoring alone. This allows operators to catch gradual overloads, not just sudden jams.

What is an electronic shear pin, and how does it compare to a mechanical one?

An electronic shear pin refers to a power sensor's ability to shut down a motor before mechanical damage occurs, similar in purpose to a physical shear pin. Unlike a mechanical pin, it doesn't need to be replaced after every trip, reducing labor and downtime.

Can these sensors be used on slurry pumps as well as crushers?

Yes. The same power monitoring principle applies to slurry pumps used in mineral processing. A sudden drop in motor workload signals a dry-run condition, allowing the system to shut down before seals or bearings are damaged.

Where should power sensors be installed in a mining facility?

Power sensors are typically installed inside the motor control cabinet rather than on the equipment itself. This keeps the electronics protected from mining site conditions such as dust, vibration, and moisture.
